Product Description
Introduction of Explosion-proof Infrared Digital Camera

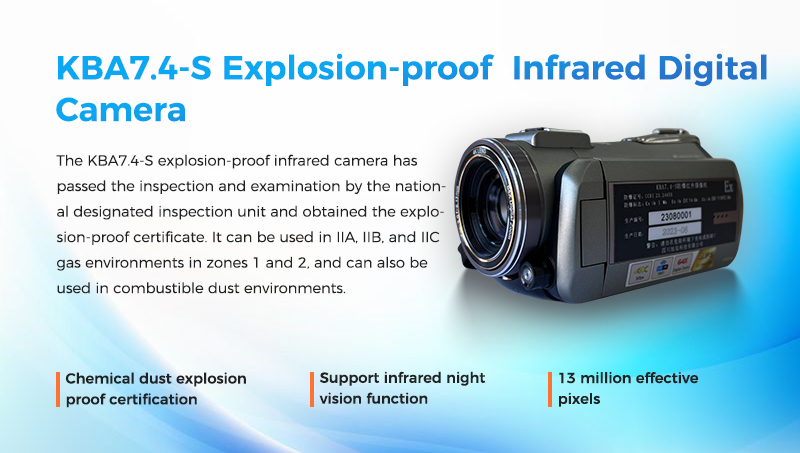

KBA7.4-S explosion-proof infrared digital camera is an intrinsically safe type of camera equipment, which has passed the examination and inspection of the designated inspection unit and obtained the explosion-proof certificate. With chemical ⅡC class and dust explosion-proof certification, explosion-proof mark is Ex ib I Mb, Ex ib IIC T4 Gb, Ex ib IIIC T130℃ Db. It is suitable for chemical plants, oil tank farms, steel plants, refueling stations, pharmaceutical plants and other IIA, IIB, IIC gas environment and combustible dust environment in zone 1 and 2.
Features of Explosion-proof Infrared Digital Camera
Excellent explosion-proof performance: Through a variety of explosion-proof certification, it can be used safely in a variety of hazardous environments, including IIA, IIB, IIC gas environments and combustible dust environments in zones 1 and 2, providing a reliable guarantee for shooting and monitoring in dangerous areas.

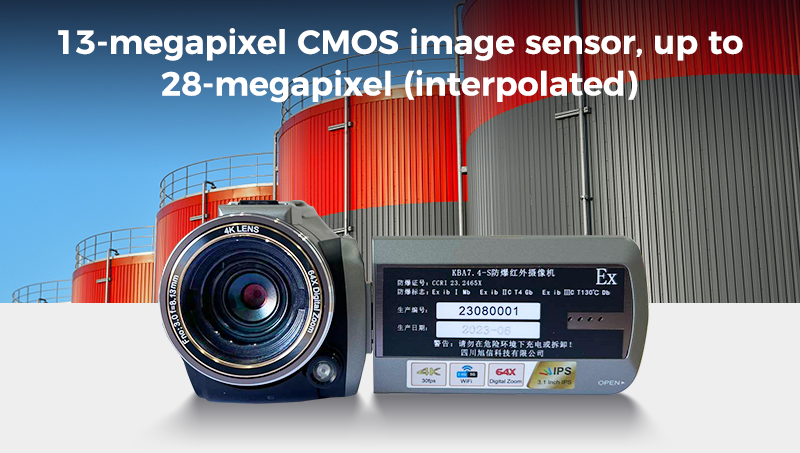

Excellent image quality: the 13-megapixel CMOS image sensor, with a maximum of 28 million (interpolated) pixels, can take high-resolution photos and videos, and can clearly record the details of the surveillance scene. Support 4K video shooting, can output 3840×2160 resolution video, the picture is clear and delicate, whether shooting static scenes or dynamic pictures, can show excellent results.

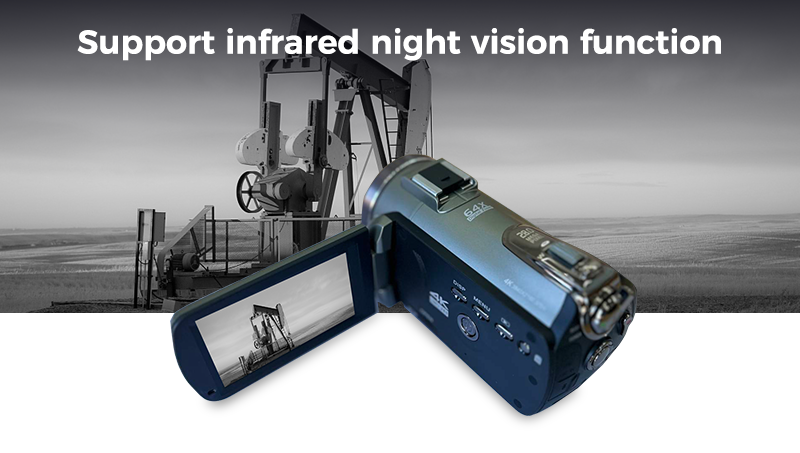

Rich and practical functions: Support infrared night vision function, even in low light or completely dark environment can shoot normally. With face detection function, it can automatically identify the face in the screen, improve the pertinence and effectiveness of monitoring. In addition, it also has anti-shake function, automatic white balance, exposure compensation and other functions, which can adapt to different shooting environments and needs.

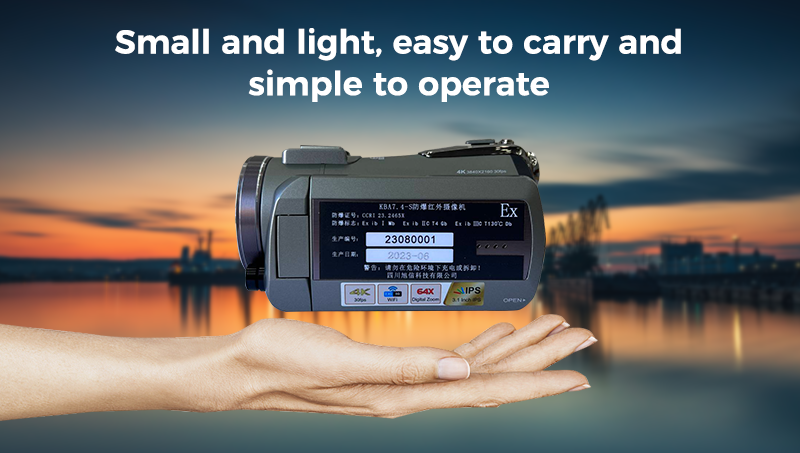

Portable and easy to operate: small and lightweight, the size is 128mm×68mm×70mm, the weight is about 305g (without battery), easy to carry, convenient for mobile shooting and monitoring in different places. Equipped with a 3.1-inch IPS touch screen, the operation is simple and intuitive, and users can easily set menus and adjust shooting parameters.

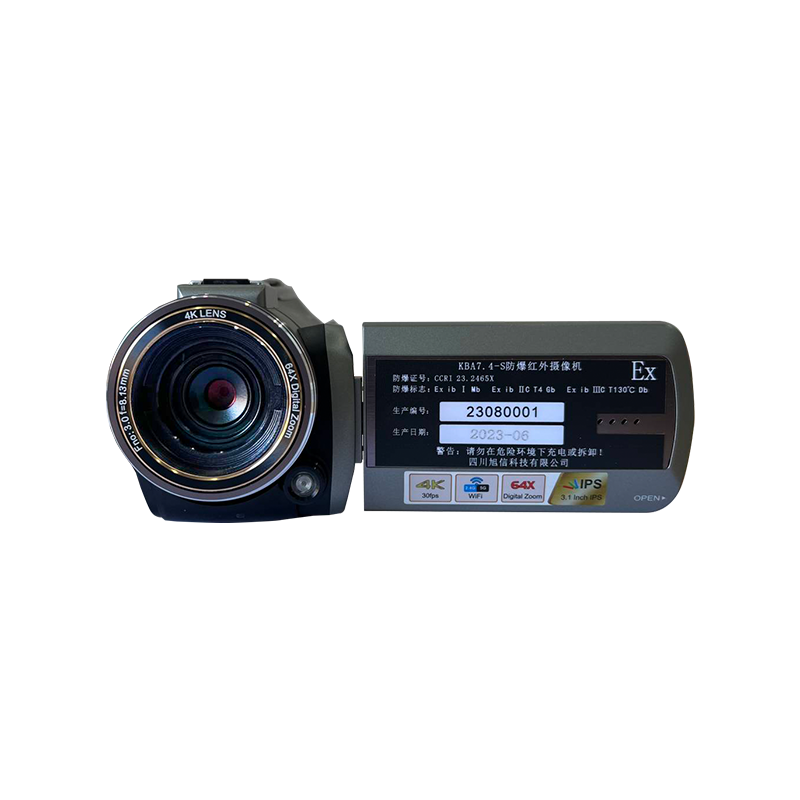

Detail photos of Explosion-proof Infrared Digital Camera
Product parameters of Explosion-proof Infrared Digital Camera
| Explosion-proof mark |
Ex ib I Mb Ex ib IIC T4 Gb Ex ib IIIC T130℃ Db |
| Image sensor | 13 megapixel CMOS sensor, up to 28 megapixel (interpolation) |
| Aperture | F: 3.0 |
| Focus Distance | F = 8.13 mm |
| Focusing range | 2.5 meters to infinity |
| Lens class | Digital zoom lens |
| zoom | 64X |
| Storage medium | SD/SDHC cards (U3) are supported, with a maximum of 256GB |
| Display screen | 3.1-inch IPS Touch screen (16:9) |
| video |
Standard: 4K(3840*2160 30fps) 2K(2560*1440 30fps) 1080P(1920*1080 30fps) 720P(1280*720 30fps) 480P(640*480 30fps) Movement: 1080P(1920*1080 60fps) 720P(1280*720 120fps) 480P(640*480 240fps) |
| photograph |
6080*4560(28M)、5600*4200(24M) 5200*3900(20M)、4608*3456(16M) 4192*3144(13M)、3648*2736(10M) 3648*2048(7MHD)、2592*1944(5M) 2048*1536(3M)、1920*1080(2MHD) 640*480(VGA) |
| dimension | 128mm×68mm×70mm |
| weight | Approx. 305g (without battery) |
| ISO | Auto /100/200/400/800/1600 |
| Face detection function | support |
| White balance | Automatic/daytime/cloudy/tungsten lamp/fluorescent lamp |
| Anti-shake function | Support (Digital Anti-shake) |
| Exposure compensation | Ev-3.0 ~ EV+3.0 |
| Selfie timing | 2 seconds /5 seconds /10 seconds |
| WiFi point-to-point connection |
Support (2.4G/5G) Stream format :H.264 |
| Night vision function | Support (IR CUT black and white night vision) |
| Hot shoe joint | Support external stereo microphone/fill light |
| USB interface | USB2.0: MIC IN/DC IN |
| Computer interface | High-speed USB2.0 |
| Lens aperture | M=37mm |
| loudspeaker | built-in |
| microphone | built-in |
| battery | Intrinsic safety battery 1700mAh |
| Working environment | |
| temperature | -20℃～+50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Applicable place | It can be used in zone 1 and 2, IIA, IIB, IIC gas environment, and can be used in combustible dust environment. |
| Class of protection | IP54 |
FAQ about Explosion-proof Infrared Digital Camera
Q1: What specific environment is KBA7.4-S explosion-proof infrared digital camera suitable for?
A1: The camera is suitable for IIA, IIB, IIC gas environment in Zone 1 and 2, and can also be used in combustible dust environment, such as chemical plants, oil tank farms, steel plants, refueling stations, pharmaceutical plants, etc.
Q2: What is the meaning of its explosion-proof mark?
A2: explosion-proof mark Ex ib I Mb, Ex ib IIC T4 Gb, Ex ib IIIC T130℃ Db, respectively, indicating intrinsically safe, suitable for coal mine, Class II gas environment and Class III dust environment, corresponding to different temperature groups and equipment protection levels.
Q3:What are the image shooting pixels of KBA7.4-S?
A3:The 13-megapixel CMOS image sensor can be interpolated up to 28 million pixels to meet different shooting needs.
Q4: What video formats can I shoot?
A4: Support 4K (38402160 30fps), 2K(25601440 30fps), 1080P(19201080 30fps) in standard mode; In sports mode, it supports 1080P (19201080 60fps) and 720P (1280*720 120fps) formats.
