Product Description

CGT-CO2000 Flammable Gas Detector for BESS

Test Gas: CO（carbon monoxide）

Sensor Type: electrochemical sensor

Sensor Service Life: 10 years

Working temperature: -40℃ to 70℃

Protection Rating: IP66

Certification: ATEX, IECEx, CE, RoHS

Product Advantages

1. High explosion-proof rating

Flameproof design, suitable for Zone 1/2 gas and dust hazardous areas, fully compliant for high-risk energy storage scenarios.

2. Wide temperature & humidity adaptability

Operating temperature ranges from -40℃ to +70℃, relative humidity 5%~95%RH, stable performance for outdoor and container energy storage systems.

3. Dual signal output

Equipped with alarm dry contact and optional RS485 bus networking; up to 32 detectors can be connected to one bus for seamless host connection.

4. Easy maintenance

Modular structure. Remote address setting, zero calibration and gas calibration via remote controller without complicated disassembly.

5. Durable & anti-interference

Built-in reverse power protection; metal explosion-proof housing with reliable earthing to resist electromagnetic interference. The sensor features long service life and tolerates minor regular contamination.

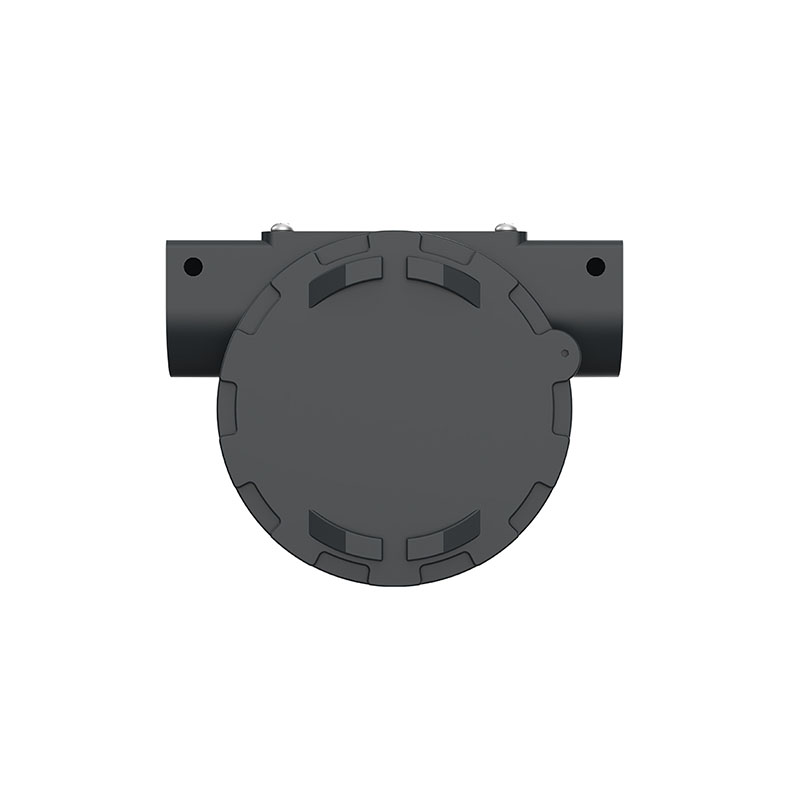

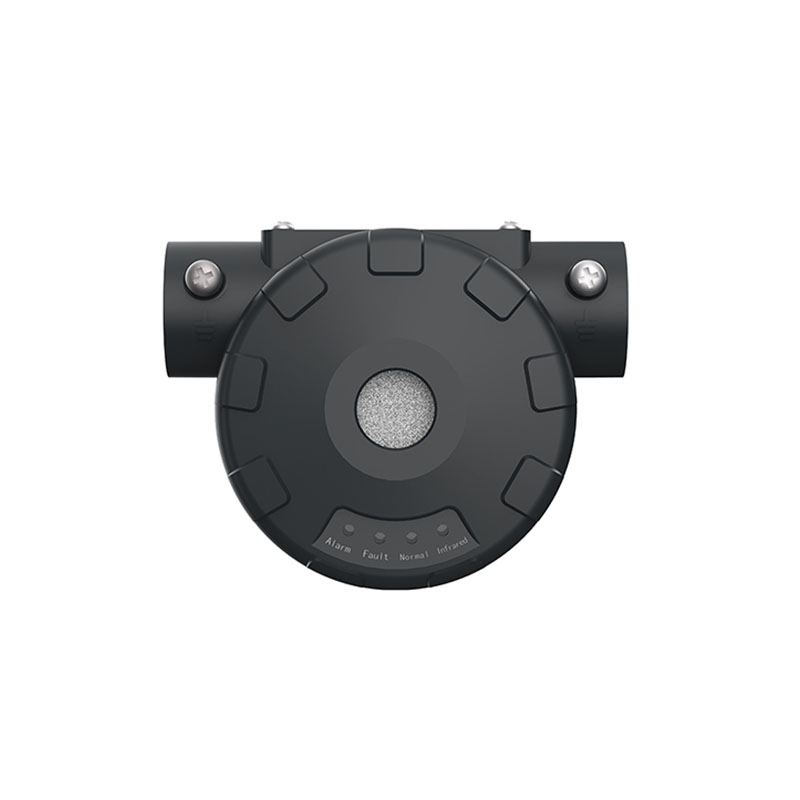

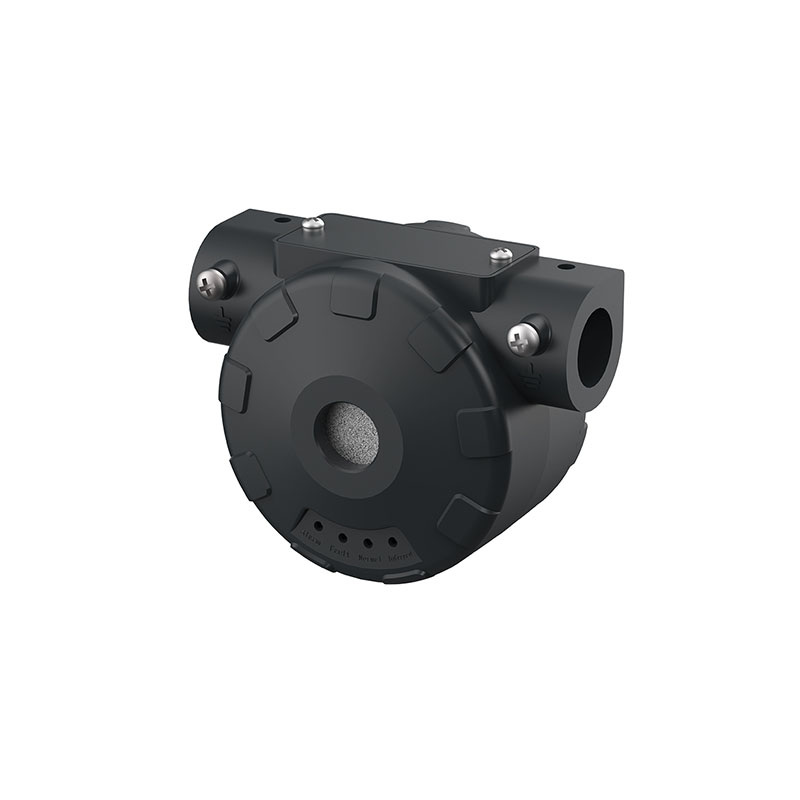

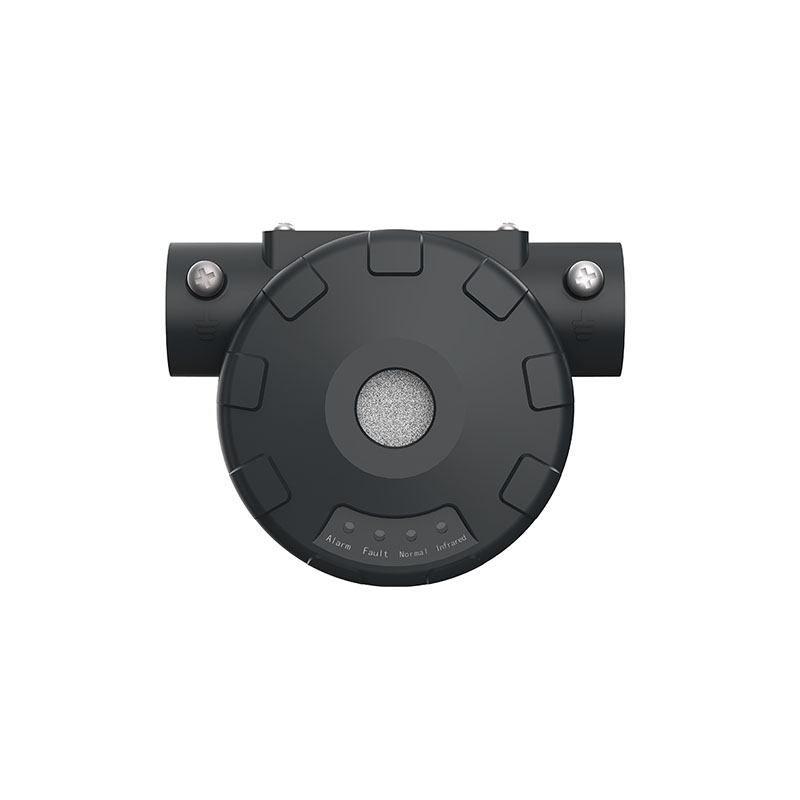

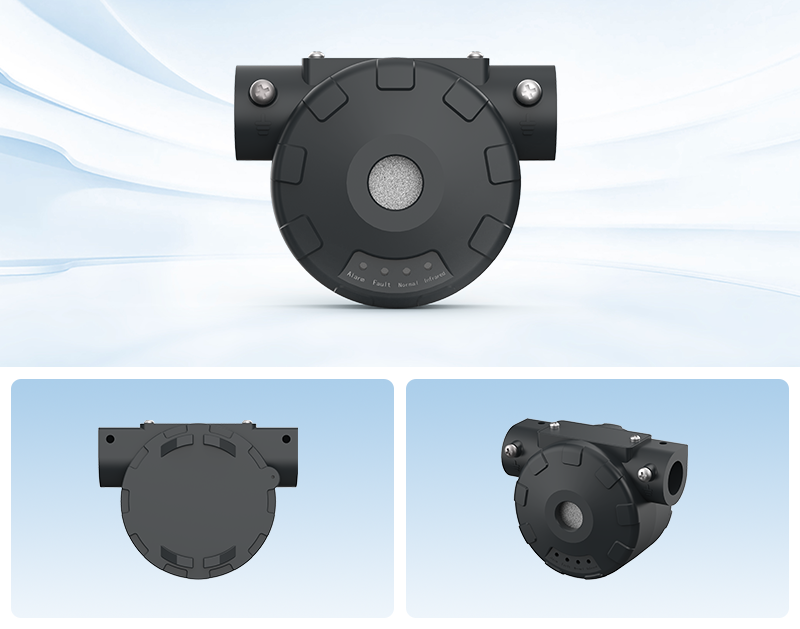

Product Images

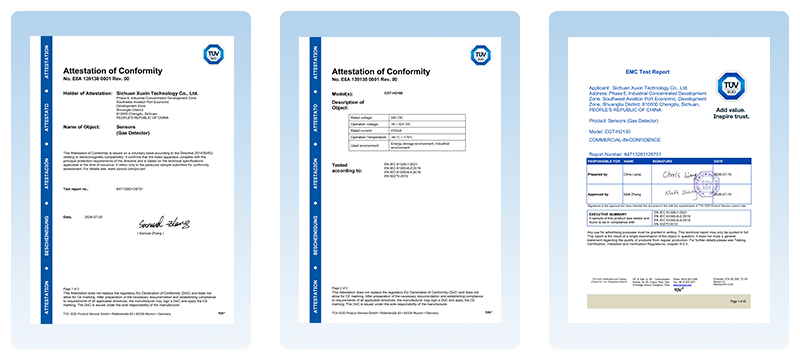

Product Certificate

The product has obtained international certifications such as ATEx, IECEx, CE, and ROHS.

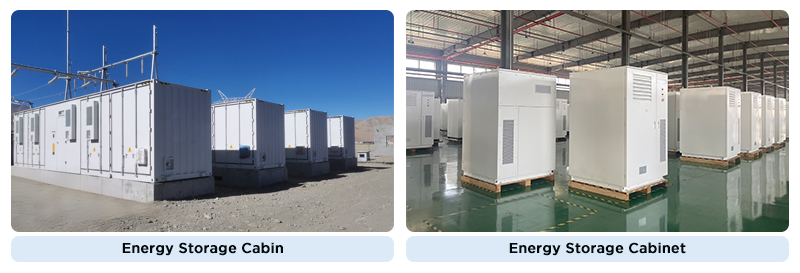

Installation location

Product parameters

Type	Specific parameters
Appearance parameter
Pigment	dark grey
Shell material	die-casting aluminium
Outline dimension	approximately 100 mm × 78 mm × 53 mm
Product weight	approximately 415 g
Function parameter
Test gas	CO（carbon monoxide）
Sensor type	electrochemical sensor
Sample mode	natural diffusion
Detection range	(0～2000)×10-6 (volume fraction)
Operate mode	continuous monitoring
Alarm value setting range (Two-level alarm)	The minimum alarm threshold for production output is set at 200×10-6 (volume fraction). The maximum alarm threshold for the outlet concentration is set at 500×10-6 (volume fraction).
Alarm error	±50×10-6 (volume fraction)
Range indication deviation	allowable error: ±80×10-6 (volume fraction)
Alarming light visibility	> 5 m (in darkness)
Response time	≤ 30s
Call time	≤ 15s
Resolution ratio	1×10-6 (volume fraction)
Zero drift range	≤50×10-6 (volume fraction)
Sensor service life	normal monitoring environment for 15 years
Electrical parameters
Working voltage	18VDC-32VDC
Rated voltage	24VDC
Power dissipation	≤ 1W
Working current	≤ 5 mA
Alarm current	≤ 25mA
Maximum current	≤ 25mA
Output signal	RS485 (optional) [The communication address defaults to 1 at factory; a built-in 120Ω matching resistor is not connected by default and can be enabled using a jumper cap]
Baud rate	9600 bps
Dry contact 1 – Low alarm relay	Group 1: Contact capacity (resistance load): 1A @30VDC; 300 mA @ 125VAC. Factory default: Open during normal operation, close during alarms, open during power loss.
Dry contact 2 – High alarm relay	Group 1: Contact capacity (resistance load): 1A @30VDC; 300 mA @ 125VAC. Factory default: Open during normal operation, close during alarms, open during power loss.
Indicate way
Pilot lamp	3 LED status lights
State indication	1. During normal operation: The green indicator light remains illuminated continuously
	2. In case of a malfunction: The yellow indicator light remains constantly illuminated.
	3. Alarm indication: When the lower limit is exceeded, a red light flashes; when the upper limit is exceeded, the red light remains on continuously.
	4. During the upgrade process: Red, yellow, and green lights will flash alternately.
Upgrade and configuration parameters	Can be connected to a computer via the RS485 bus (optional)
Certification and protection level
Attestation	ROHS， CE ，ATEx， IECEx
Protect grade	IP66
Explosion-proof mark	II2 G Ex db IIC T6 Gb II2 D Ex tb IIIC T80°C Db

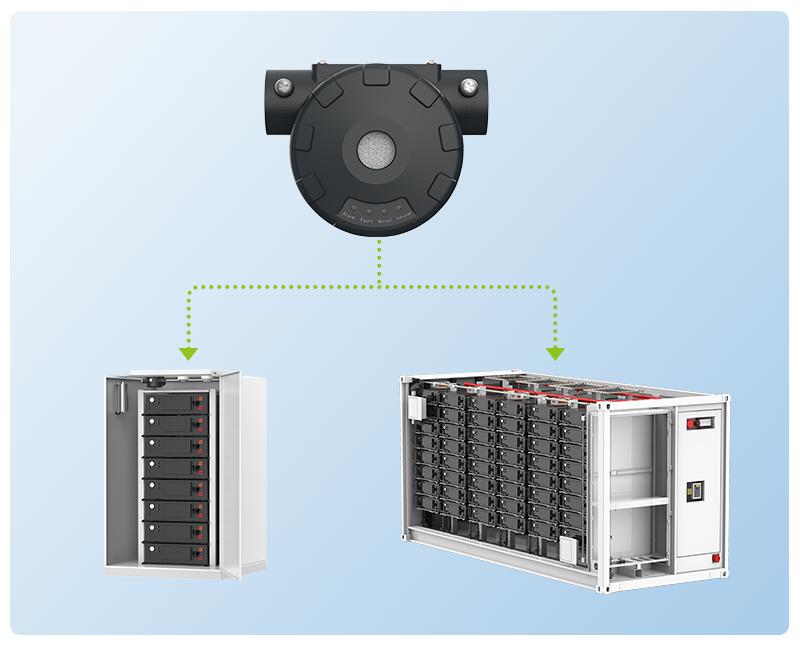

Application Scenarios

Energy storage power stations, energy storage containers, energy storage cabinets, battery compartments and other lithium battery energy storage environments. It monitors real-time carbon monoxide concentration inside compartments and triggers alarms when concentration exceeds thresholds to prevent thermal runaway accidents of batteries.

FAQ

Q1. What gas does this detector measure, and what is its measuring range?

A1. It is dedicated to carbon monoxide detection, with a measuring range of 0~2000 ppm.

Q2. What is the power supply voltage, and which power supply is recommended?

A2. Rated voltage: 24V DC, operating voltage range: 18~32V DC. Stable pure DC power supply is preferred; switching power supplies with strong interference are not recommended.

Q3. What is the maximum number of detectors that can be connected in a network?

A3. Detectors are connected in daisy-chain mode via RS485 bus, supporting up to 32 units per bus. A 120Ω terminal resistor shall be installed at the last detector.

Q4. How often should the detector be cleaned and calibrated?

A4. Clean dust on air intake every six months; conduct alarm test once a year. The detector is pre-calibrated before delivery, re-calibration is unnecessary unless detection deviation occurs.

Q5. Where are the forbidden installation positions?

A5. Do not install the detector where it is directly exposed to oil fume, steam spray, strong air flow, inverters/motors or enclosed small cabinets, which will cause reading drift or permanent sensor damage.
