Product Description
Introduction of Industrial Phone

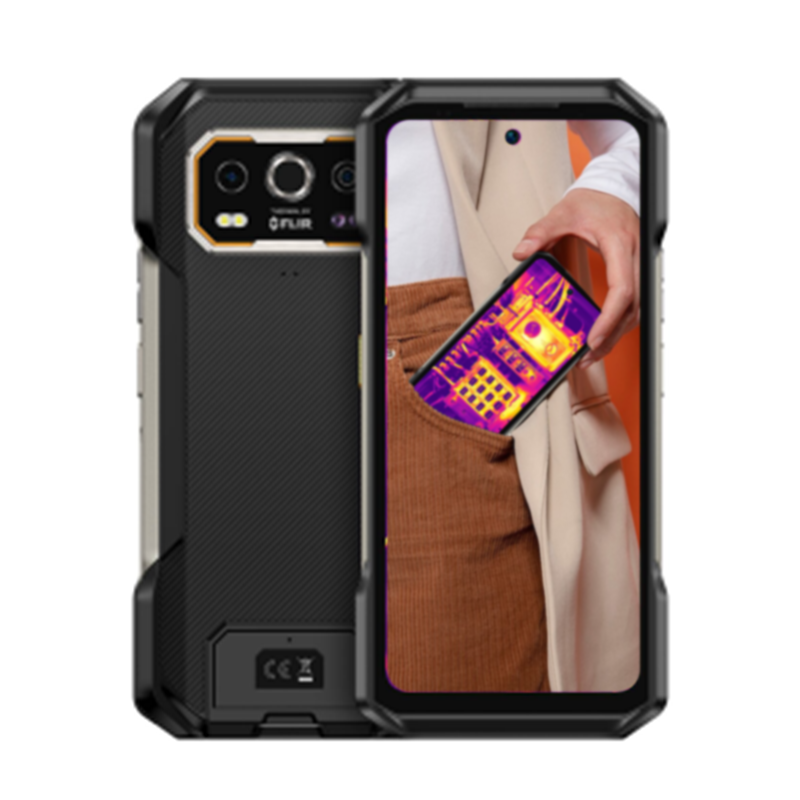

XUXIN-X27 is an Industrial Phone designed specifically for industrial applications. It not only inherits the basic communication functions of ordinary mobile phones, but also undergoes comprehensive upgrades in durability, protection level, and industrial interfaces to meet the needs of harsh industrial environments and diverse application scenarios.
Feature of Industrial Phone
1) Made of high-strength materials, it can withstand physical impacts such as falling, impact, and vibration, ensuring stable operation in complex and changing industrial environments.
2) Equipped with multiple industrial standard interfaces, it is easy to connect with various industrial equipment, achieve data transmission and remote control.
3) Equipped with a large capacity battery to ensure long-term stability, suitable for use in industrial environments where frequent charging is not possible.
4) Customized development of hardware and software can be carried out according to customer needs, achieving personalized configuration to meet the needs of different industrial scenarios.
Detail Photos of Industrial Phone
Product parameters of Industrial Phone
| Physical Characteristics | |
| Color | Black |
| Material | PC |
| USB | Type-C, USB 2.0 |
| Headphone Jack | 3.5mm Headphone Jack |
| Expansion Connector 2.0 | Smart Expansion Connector, supporting uSmart series accessories. And the type-C port allows charging while the uSmart Connector working. |
| Card Slots | 3, 1x Nano-SIM + 1x Nano-SIM + 1x microSD |
| Keys | Right: Power button(Fingerprint)+Volume button, Left: Custom Key |
| Size & Weight | |
| Product Size | 182.8 x 86.8 x 18.5 mm |
| Product Weight | 441g |
| Package Size | 108.1 x 198.1 x 71.5 mm |
| Package Weight | xx g |
| Ruggedness | |
| Certification | IP68/IP69K/MIL-STD-810H |
| Splash, Water, and Dust Resistant | Maximum depth of 2 meters up to 30 minutes |
| Drop resistance | Up to 2M tall |
| Working Temperature | -30℃ - 55 ℃ (-22℉ - 131℉) |
| Thermal Imaging | |
| App | MyFLIR Pro |
| Resolution | 80 x 60 |
| Refresh Rate | 9Hz |
| Pixel Pitch | 17μm |
| NETD | <50mk |
| Temperature Measurement | -10°C to 450°C |
| Accuracy | ±3℃ |
| Display | |
| Screen Size | 6.78-inch |
| Screen Resolution | 1080 x 2460 FHD+ |
| Aspect Ratio | 20.5:9 |
| PPI | 396 |
| Color Depth | 8bit, 16.7M |
| Refresh Rate | 120Hz |
| Screen-to-Body Ratio | 85% |
| Multi-touch | 10 |
| Processor | |
| CPU Model | MediaTek Dimensity 6300 |
| Main frequency | 2.4GHz |
| CPU Core | 8, 2 x Arm Cortex-A76, 6 x Arm Cortex-A55 |
| GPU | Arm Mali-G57 MC2 1.0GHz |
| RAM & Storage | |
| RAM | 12GB LPDDR4X +12GB virtual RAM (The virtual RAM can be activated in Settings at your will. ) |
| Storage | 256GB UFS2.2 |
| Max. Expansion Supported | 2TB |
| Rear Camera | |
| Rear Camera Numbers | 2 |
| Main Rear Camera | Pixel: 50MP |
| Details: Samsung GN1 CMOS sensor, 1.2μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture | |
| Night Vision Camera | Pixel: 64MP |
| Details: OV64B1B CMOS sensor, FOV 79.4°, ƒ/1.79 large aperture | |
| Ultra-wide Angle Lens | Pixel: / |
| Details: / | |
| 3.2X Optical Zoom Telephoto Lens | Pixel: / |
| Details: / | |
| Depth Sensor | / |
| Flash | 2 |
| Video Recording Resolution | 2K@30fps, FHD@30fps, HD@30fps, VGA@30fps |
| Special Features | Normal mode, Night vision mode, Film mode, 50MP mode, Night mode, Document correction, GroupPhoto, AI Emoji, Gif, Portrait, Sports, Pro mode, Panorama, Slow motion, Time lapse, Intelligent acanning |
| Front Camera | |
| Pixel | 32MP |
| Details | Samsung GD1 CMOS sensor, 0.8μm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture |
| Video Recording Resolution | 2K(30fps), FHD(30fps), HD(30fps), VGA(30fps) |
| Special Features | Normal mode, Film mode, GroupPhoto, AI Emoji, Gif, Portrait |
| Battery & Charging | |
| Capacity | 10600mAh |
| Watt Hours Per Battery | 41.022 Wh |
| Battery Type | Li-ion Sub-zero Solid-State Battery |
| Charging Details | 33W, 11V3A |
| Wireless Charge | Support, 30W, 16V1.5A, Ulefone private protocol |
| Reverse Charge | Wireless Reverse Charging, 5W |
| Dock Charging | / |
| Standby Time | 576 Hours |
| Talk Time | 58 Hours |
| Network & Connectivity | |
| Card Type | Nano+Nano+microSD |
| Cellular | 5G/4G/3G/2G |
| Band Details | 5G: 5G NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79 |
| 4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66/71 TDD-LTE: B34/38/39/40/41 | |
| 3G: WCDMA: B1/2/4/5/6/8/19 | |
| 2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10 | |
| Standby Mode | Dual sim dual standby |
| VoNR | Support |
| VoLTE | Support |
| WiFi | 2.4G/5G, 802.11 a/ac/b/g/n |
| Bluetooth Version | BT5.2 |
| Navigation | GPS/GLONASS/Beidou/Galileo/QZSS |
| Audio | |
| Speaker Numbers | 1 |
| Speaker Model | 1325 BOX |
| Speaker Power Max | 1.5W |
| Smart PA | AW88394 |
| Loudness | / |
| Equivalent Cavity | / |
| Special Features | / |
| Security | |
| Fingerprint ID | Support |
| Face Unlock | Support |
| System & Features | |
| Android Version | Android 14 |
| Pre-installed APP | Google Assistant, Calculator, Google Calendar, Camera, Children Space, Chrome, Cleaning Assisitant, Clock, Contacts, Google Drive, Easy Launcher, Files by Google, Find Device, FM Radio, Freezer, Gallery, Game Mode, Gmail, Google, Google TV, Keep Notes, Google Maps, Google Meet, Google Messages, Mobile Guardian, MyFLIR, NFC Access Card, Outdoor Toolkit, Phone, Google Photos, Google Play Store, Remote Control, Safety, Service Center, Settings, SIM ToolKit, Sound Recorder, Theme, Widget Box, YouTube, YT Music |
| Language | Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese |
| Blinking Notification Light | Support, red/green/blue light |
| Battery Status Light | Support |
| Audio Format | Supported MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2 |
| Video Format | Supported MOV/MKV/3GP/MP4 |
| Image Format | Supported GIF/JPEG/PNG/BMP |
| Text Format | Supported TXT/HTML |
| FM Radio | Support, headset-free FM radio |
| Cell Broadcast | Support |
| Sensor |
Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Thermal Sensor, Infrared sensor |
| Special Features | |
| Underwater Camera | Support |
| Gloves Mode | Support |
| Digital Toolbox | Height Meter, Compass, Gradienter, Flashlight, Hanging Painting, Magnifier, Alarm bell, Plumb bob, Protractor, Noise Test, Pedometer, Barometer, Funny Sound, Underwater Camera |
| OTG Function | Support Wireless Reverse Charging |
| NFC | Support |
| IR Blaster | Support |
FAQ
Q1. Can I customize an Industrial Phone？
A1: Yes, OEM/ODM is available.
Q2. Do you provide sample? Free or charge?
A2: Sorry, the sample cannot be provided for free. We can offer it to you at wholesale price.
Q3. Why choose you?
A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
