Rugged Tablet Android

XUXIN KJD3.7 Rugged Tablet Android is a high-performance terminal designed specifically for wireless communication systems in explosion-proof areas such as coal mines. It adopts advanced Android operating system and powerful hardware configuration, with excellent explosion-proof, dustproof, waterproof and anti drop performance, and can operate stably in harsh underground working environments.

Send Inquiry
Product Description

Rugged Tablet

Rugged Tablet Android

Rugged Tablet Android

Introduction of Rugged Tablet Android

XUXIN KJD3.7 Rugged Tablet Android is a high-performance terminal designed specifically for wireless communication systems in explosion-proof areas such as coal mines. It adopts advanced Android operating system and powerful hardware configuration, with excellent explosion-proof, dustproof, waterproof and anti drop performance, and can operate stably in harsh underground working environments.



Feature of Rugged Tablet Android

1) It has a protection level of IP65, which can prevent dust and water. At the same time, it adopts a sturdy shell design with anti drop performance, which can maintain stable operation in harsh outdoor environments.

2) Provide 4GB RAM and 64GB ROM storage space to meet users' needs for multitasking and storage.

3) Adopting an 8-inch IPS high-definition screen with a resolution of 800 * 1280, the display effect is clear. The screen adopts a multi touch capacitive screen design, which is sensitive to operation and convenient for users to perform various operations.

4) Adopting intrinsic safety explosion-proof technology, obtaining explosion-proof qualification certificate and safety standard certification. It can be used in environments such as coal mines with explosive mixtures such as methane and coal dust, ensuring safe use.

5) Supports GPS navigation function, making it convenient for users to locate and navigate. At the same time, it supports NFC function, making it convenient for users to perform near-field communication and data exchange operations.

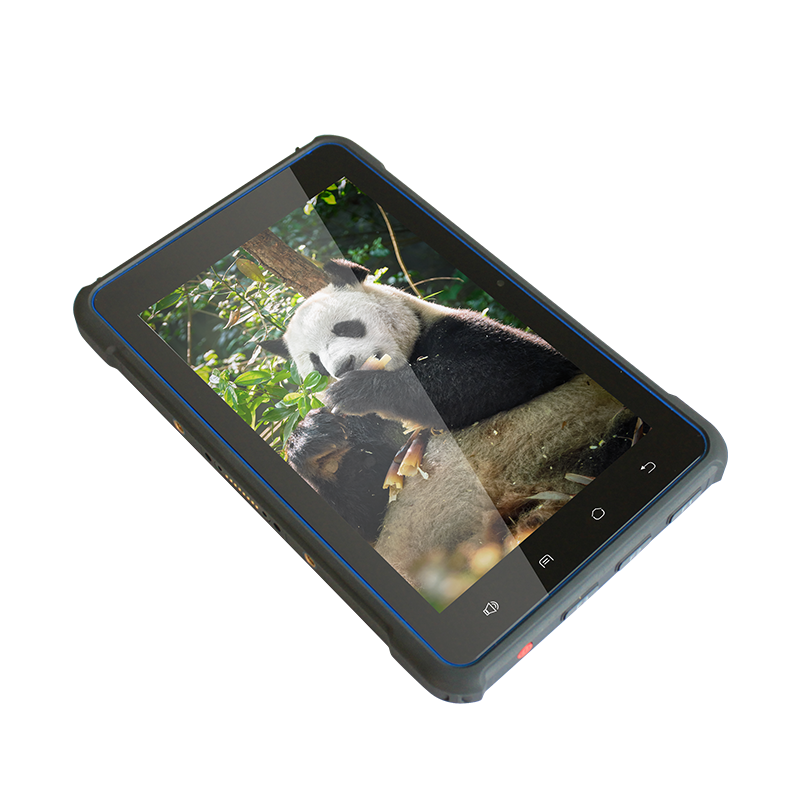

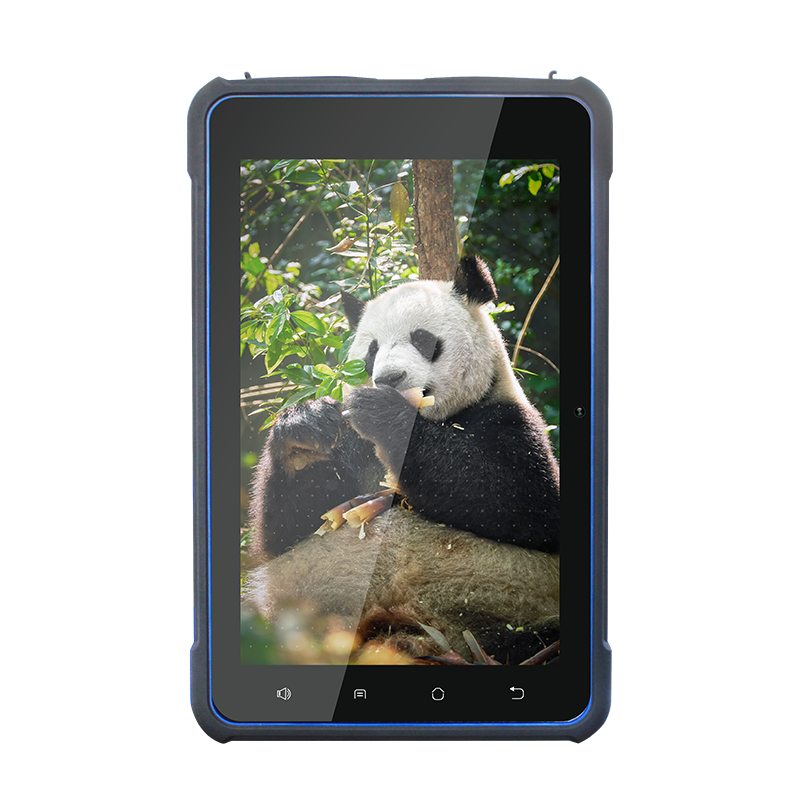

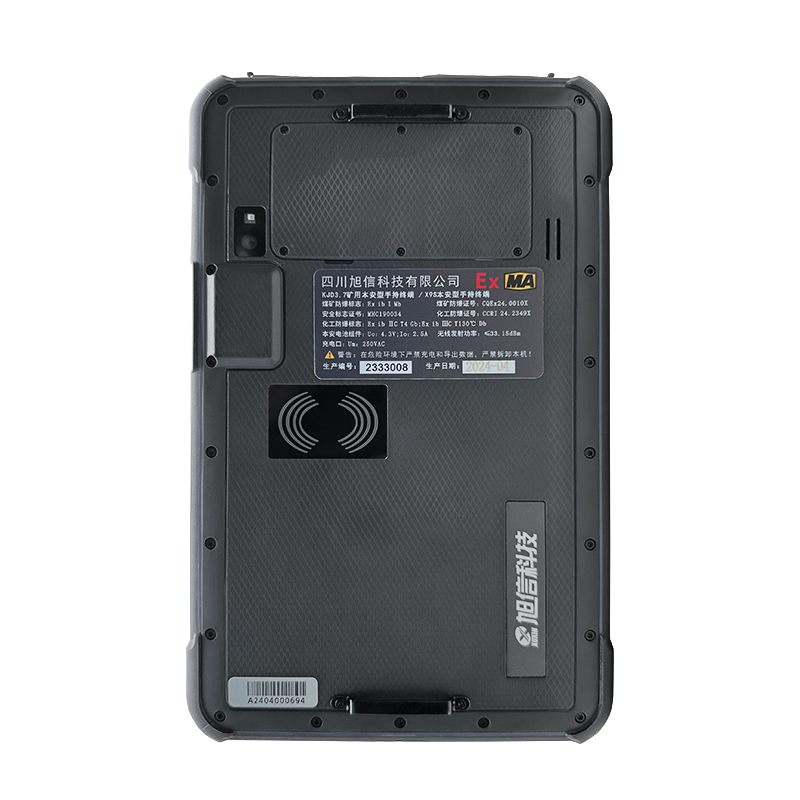

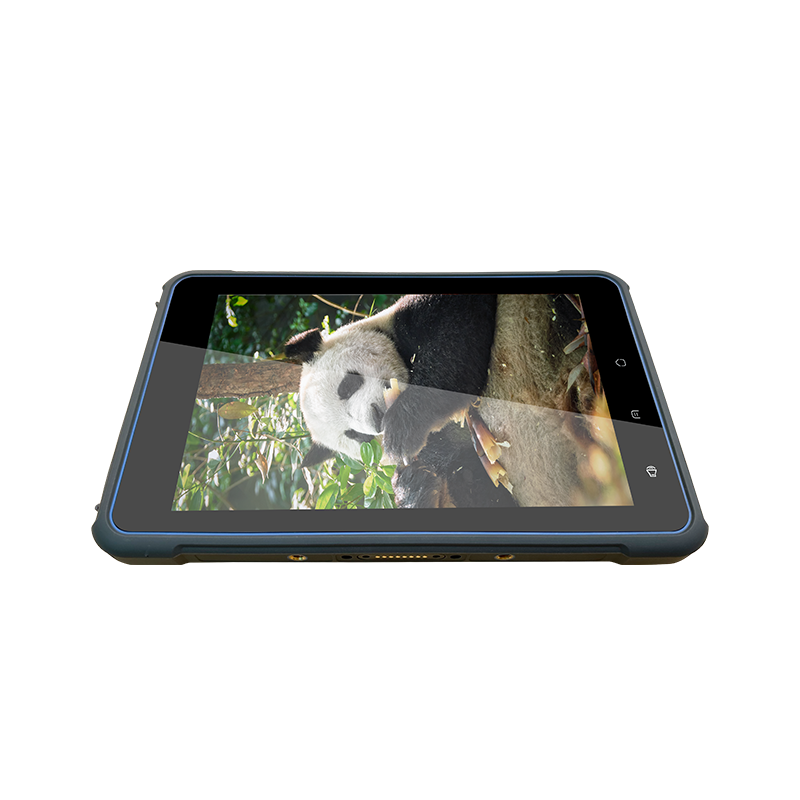

Detail photos of Rugged Tablet Android

Rugged Tablet AndroidRugged Tablet AndroidRugged Tablet AndroidRugged Tablet Android

Product parameters of Rugged Tablet Android

Explosion proof mark Ex ib I Mb;Ex ib IIC T4 Gb
Overall dimensions 230×146×20mm
Whole machine weight 650g
Display 8-inch IPS high-definition screen, resolution 800 * 1280
Touch screen Corning Gorilla third-generation industrial grade multi touch capacitive screen
Expansion Slots 2 PSAM card slots (expandable to customize 4 PSAM cards), 2 SIM card slots, and 1 MicroSD (TF) card slot
Communication interface 1 Type-C interface, 1 Type-A interface, 1 DC3.5mm charging port
Indicator light Charging indicator light
keyboard Side scan key, side function key
Camera Front 5 million pixels, rear 13 million pixels, camera with flash and autofocus function
Flashlight Low power LED lighting for emergency use
Location GPS/GLONASS/Beidou/Galileo
CPU Eight core 64 bit, MT6762 main frequency 2.0GHz
Memory capacity RAM:4GB  ROM:64GB
Operating system Android10.0
Expand memory Supports 256GB Micro SD card
4G

TD-LTEBand38/39/40/41

FDD-LTEBand1,2,3,4,7,17,20

3G WCDMA(850/1900/2100MHz);
2G GSM/GPRS/Edge(850/900/1800/1900MHz)
WIFI 2.4G/5G dual band, compliant with IEEE802.11a/b/g/n/ac
Bluetooth Compliant with Bluetooth 4.2
Operating temperature -20℃~50℃
Storage temperature -20℃~70℃
Relative humidity 5% to 95% non condensable
Protection level IP65
Battery capacity 6000mAh
The following configurations are optional modules for customers
2D barcode collection (optional)
2D scanning engine Honeywell-6603
Support two-dimensional barcode types PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,USPostNet,USPlanet,UKPostal,AustralianPostal,JapanPostal,Dutch
Ultra high frequency RFID (optional)
Ultra high frequency RFID (optional)
Support agreement Regarding EPCC1GEN2/ISO18000-6C protocol
Scan Distance Optional distance of 1-6 meters (depending on label and environment)
High frequency RFID (optional)
Support frequency 13.56MHz
Support agreement Regarding the dual protocols of ISO15693 and ISO14443
Scan Distance 0-7 centimeters (depending on label and environment)
Low frequency 125K/134.2K animal ear tags
High frequency (CPU card) Supports reading and writing of CPU cards, used in conjunction with PSAM
Active 2.45G (customized) Distance of 200m, 200 labels can be read at once
Fingerprint recognition (optional)
Module functionality Fingerprint input/comparison/deletion, image processing, etc
Sensor TCSI biometric fingerprint/FBI fingerprint authentication
Sensor type Capacitive inductive type
Image size 256*360pixel
Resolving power 500 DPI
Storage capacity 1000 pieces
ZigBee (optional)
ZigBee Use wireless networking for data collection
Other optional modules (optional)
Electric infrared (customized) Support power infrared function
433M (customized) Adjustable distance
