Product Description
Rugged Tablet
Introduction of Rugged Windows Tablet
XUXIN Expad-10 is a Rugged Windows Tablet designed specifically for harsh environments, supporting the Windows 10 operating system. It has been widely used in industrial automation, petrochemicals, outdoor exploration and other fields due to its excellent performance and stable structure.
Feature of Rugged Windows Tablet
1) Equipped with a 10.1-inch touch screen, made of high-strength and high hardness materials, with a hardness of 7H or above, it can prevent scratches without the need for protective film.
2) Equipped with an Intel processor and 8GB of RAM and 128GB of body memory, the device ensures smooth operation and ample storage space.
3) Equipped with a 5000mAh intrinsic safety lithium battery, it supports long-term use. The battery is detachable, making it convenient for users to replace the backup battery or charge it.
4) Equipped with various safety sensors, such as temperature sensors, pressure sensors, etc., to monitor the working status of the equipment in real time and ensure safe use.
5) Equipped with a 5000mAh intrinsic safety lithium battery, it supports long-term use. The battery is detachable, making it convenient for users to replace the backup battery or charge it.

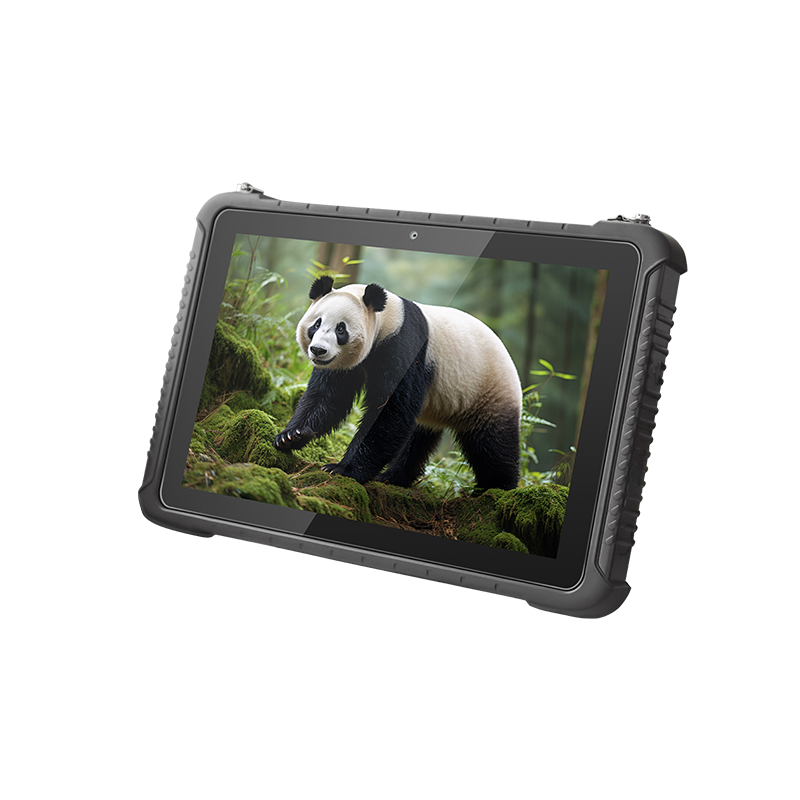

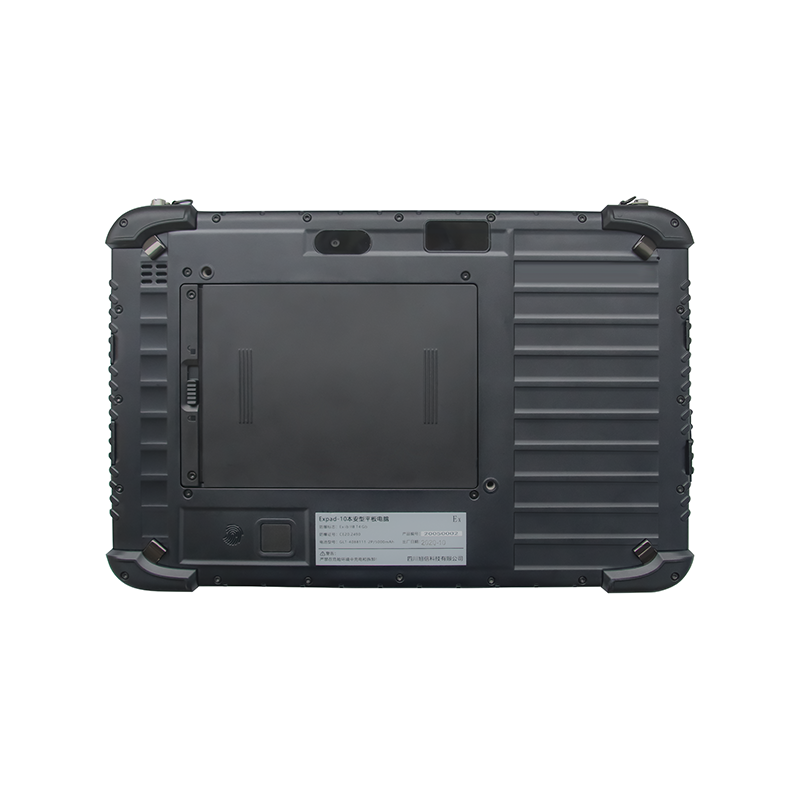

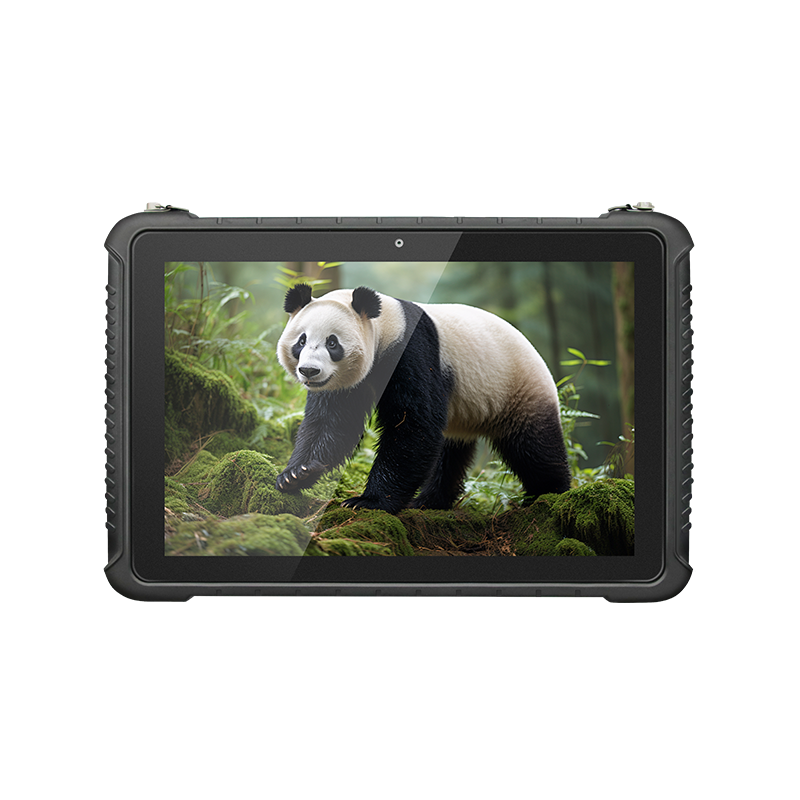

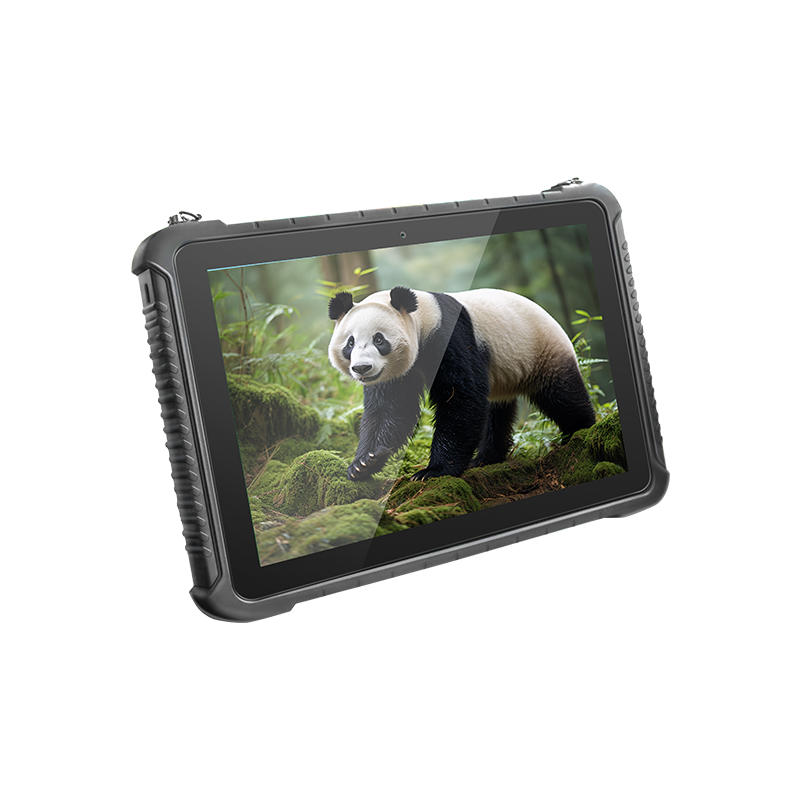

Detail photos of Rugged Windows Tablet
Product parameters of Rugged Windows Tablet
| Explosion proof sign | Ex ib IIB T4 Gb |
| Outline dimension | 280.4*187*26.6mm |
| Weight | Bare machine 1014g |
| Colour | black |
| Screen size | 10.1 inch 16:10 |
| Screen resolution | 1200×1920 |
| Brightness | 330 cd/m2 |
| Touch Screen | 10 point capacitive screen, G+G, hardness above 7H, scratch resistant |
| Front camera | 2.0MP with charging indicator light |
| Rear Camera | 8.0MP （USB） |
| Speaker | Built in 8 Ω/0.8W waterproof speaker x 1 |
| Mic | Sensitivity: -42dB, output impedance 2.2k Ω |
| Battery capacity | Intrinsic safety type 5000mAh |
| Endurance | 6 hours (default 50% volume, default 200 lumens brightness, playing 1080P high-definition video) |
| CPU | Intel JASPER LAKE N5100，4M Cache, 2.20 GHz |
| GPU | Intel® HD Graphics 515 |
| Operating system | windows 10 Home 64bit |
| RAM | 8GB |
| SSD | 128GB，Optional 256GB |
| WIFI | WIFI 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI Intel 3165D2WG (3.3v) |
| Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m |
| 4G |
Mobile EC25-EC (European version) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (with poor support from China Unicom and China Telecom, only B8 support without TDD frequency band) Europe, Middle East, Africa |
| GPS | support |
| One-dimensional code |
Optional, MOTO SE655E100R, optical resolution: 5ml, scanning speed: 50 times/s, supports code systems: UPC/EAN, Bookland EAN, UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128, Code 39,Trioptic Code 39 , Code 32,Code 93 ,Code 11 |
| QR code |
Optional, EM80 hard decoding, optical resolution: 5ml, scanning speed: 50 times/s, supports code systems: PDF417, MicroPDF417 Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses, Han Xin,Han Xin Inverse |
| Expand external storage | TF x1 max：128G |
| SIM | SIM x1 |
| USB2.0 | Micr USB 2.0x1 |
| USB3.0 | USB 3.0x1 |
| DC interface | DC 12V4A ∮4.0mm |
| Headphone jack | ∮3.5mm |
| HDMI interface | HDMI 1.4a Type C |
| Pogo Pin | 12pin Pogo Pin |
| UART serial port | RS232 TTL |
