Explosion-proof Body Worn Camera

Product Description

Introduction of Explosion-proof Body Worn Camera

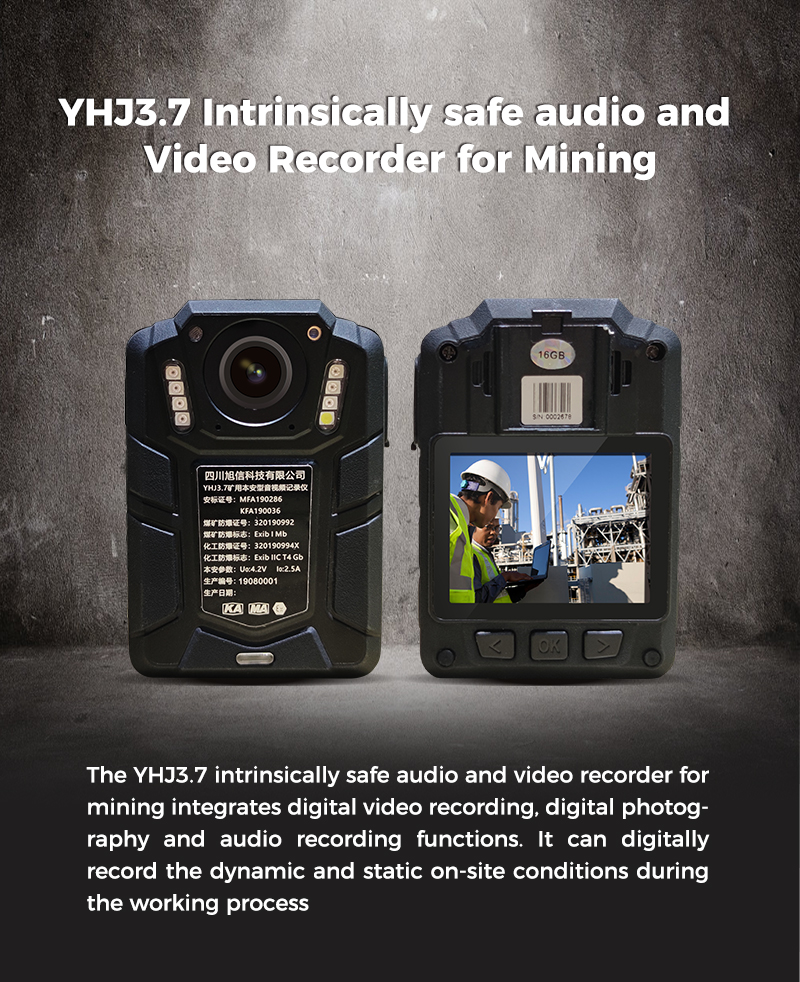

YHJ3.7 is an explosion-proof body worn camera integrating video recording, photography and audio recording. It features IP68 protection, a 2150mAh battery that lasts for over 6 hours, and supports infrared night vision and digital zoom. It is suitable for multiple industries and can record the working site conditions.

Feature of Explosion-proof Body Worn Camera

1) Dual-scenario explosion-proof: The coal mine and chemical scenarios respectively comply with the corresponding explosion-proof marks, ensuring safety.

2) High-definition multi-specification shooting, supporting 1296P high-definition video recording, with multiple resolutions and frame rates available for selection.

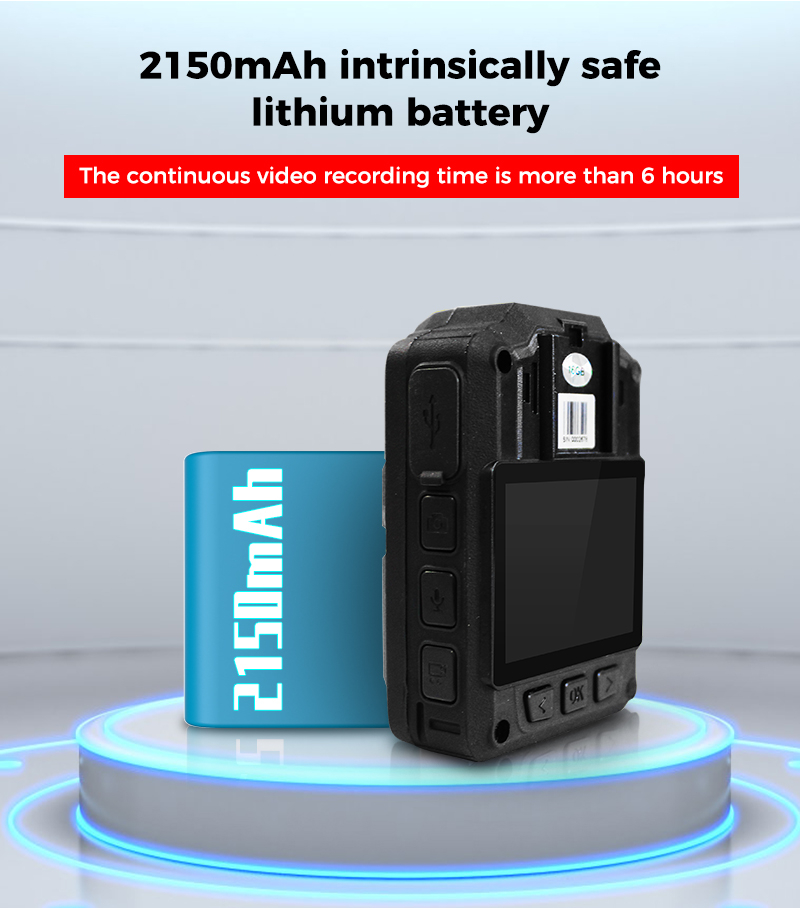

3) Powerful battery life and storage: The 2150mAh battery provides over 6 hours of battery life, and the storage can be expanded to 128GB.

4) Convenient operation, supporting one-click recording and playback. Recording can be started directly when the device is turned off.

5) Strong environmental adaptability, IP68 protection, human faces can be clearly seen within 10 meters in dark environments.

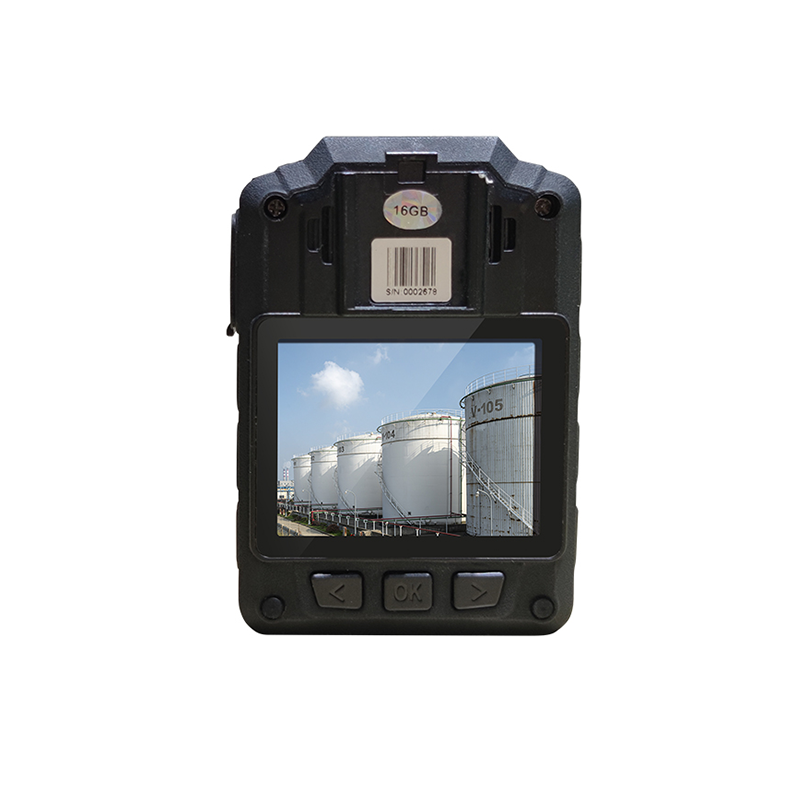

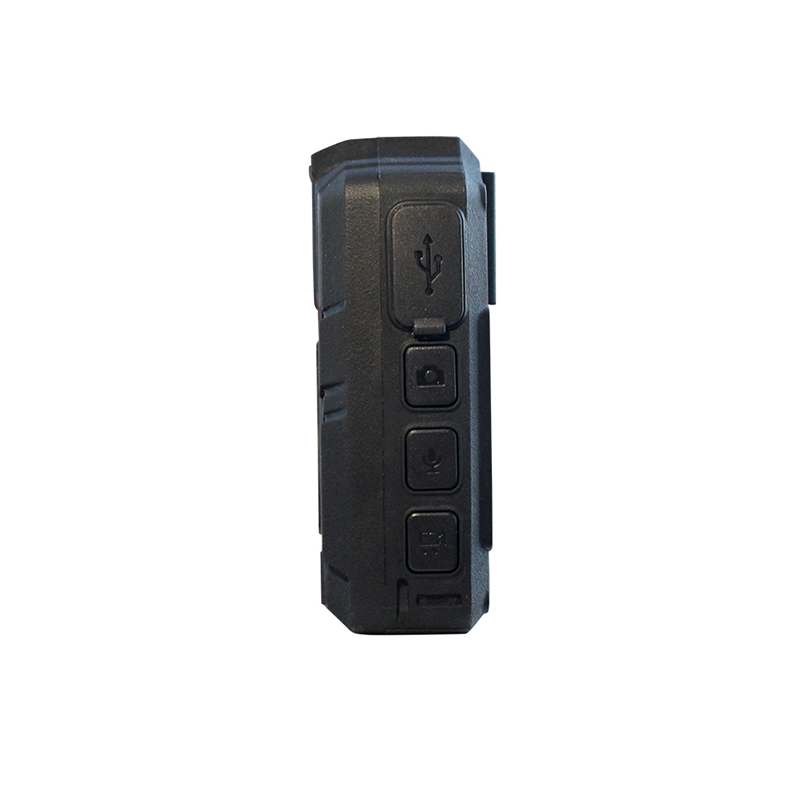

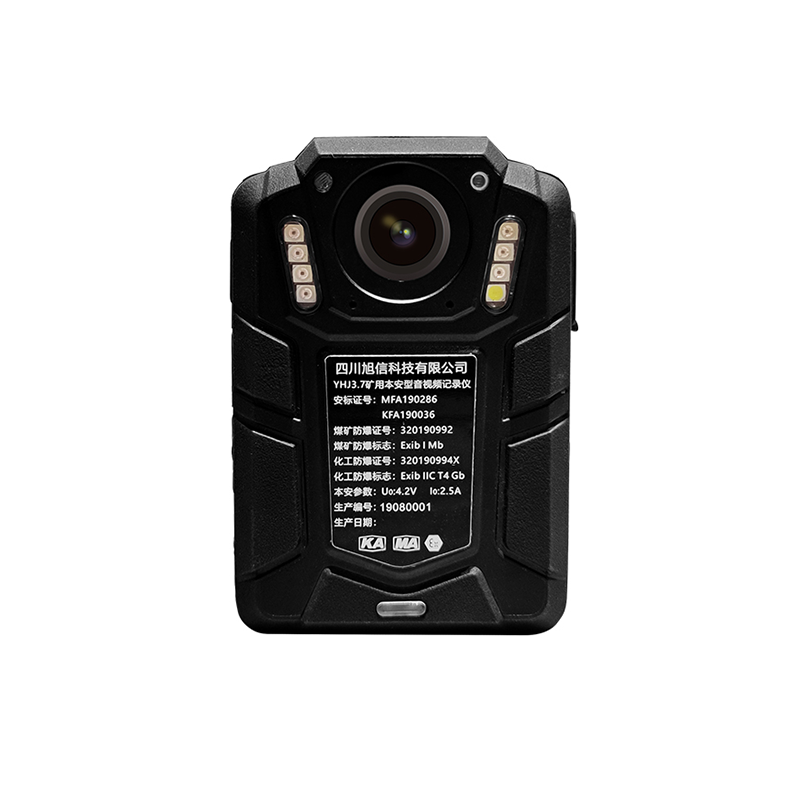

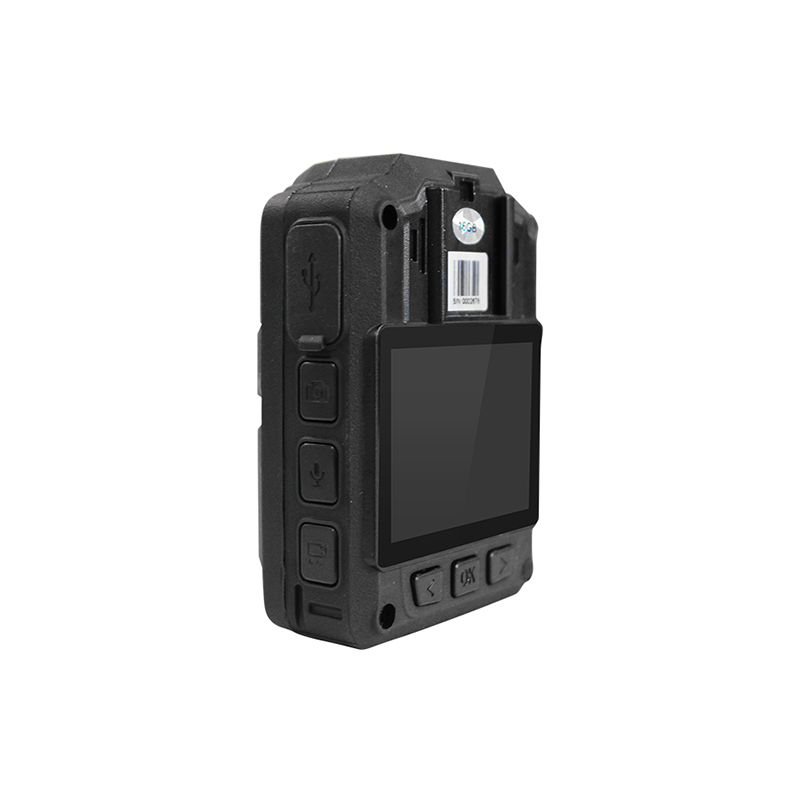

Detail photos of Explosion-proof Body Worn Camera

Explosion-proof Body Worn Camera

Product parameters of Explosion-proof Body Worn Camera

Explosion-proof mark	Ex ib I Mb Ex ib IIC T4 Gb

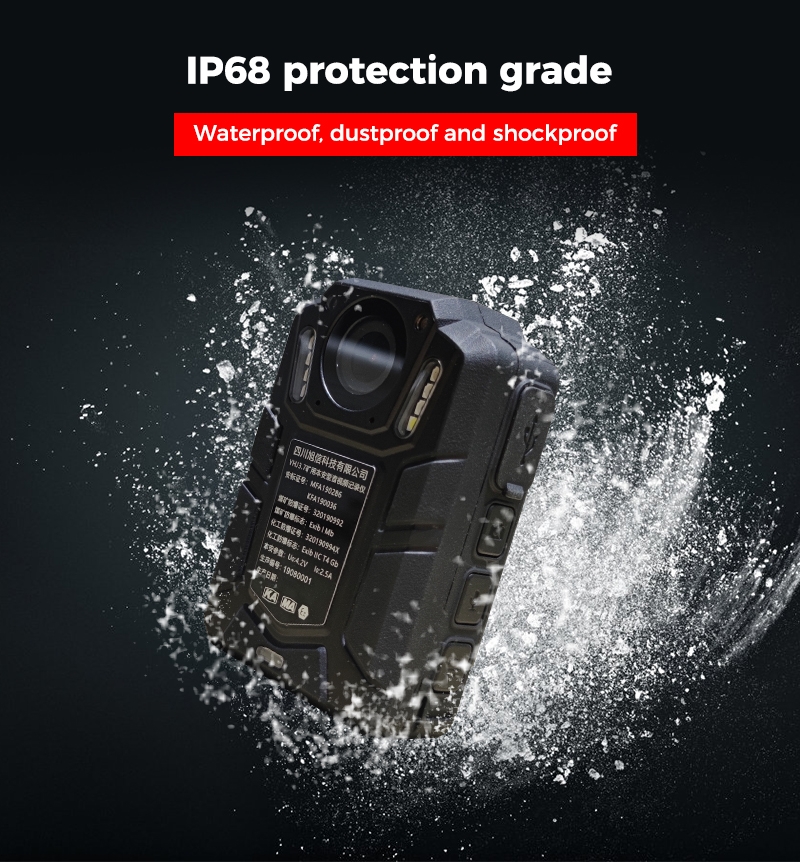

Protection grade	IP68
External dimensions	80×55×30.85mm
Weight	160g
Working voltage	3.6V-4.2VDC
Maximum operating current	≤500mA
Battery capacity	2150mAh
Startup time	2s

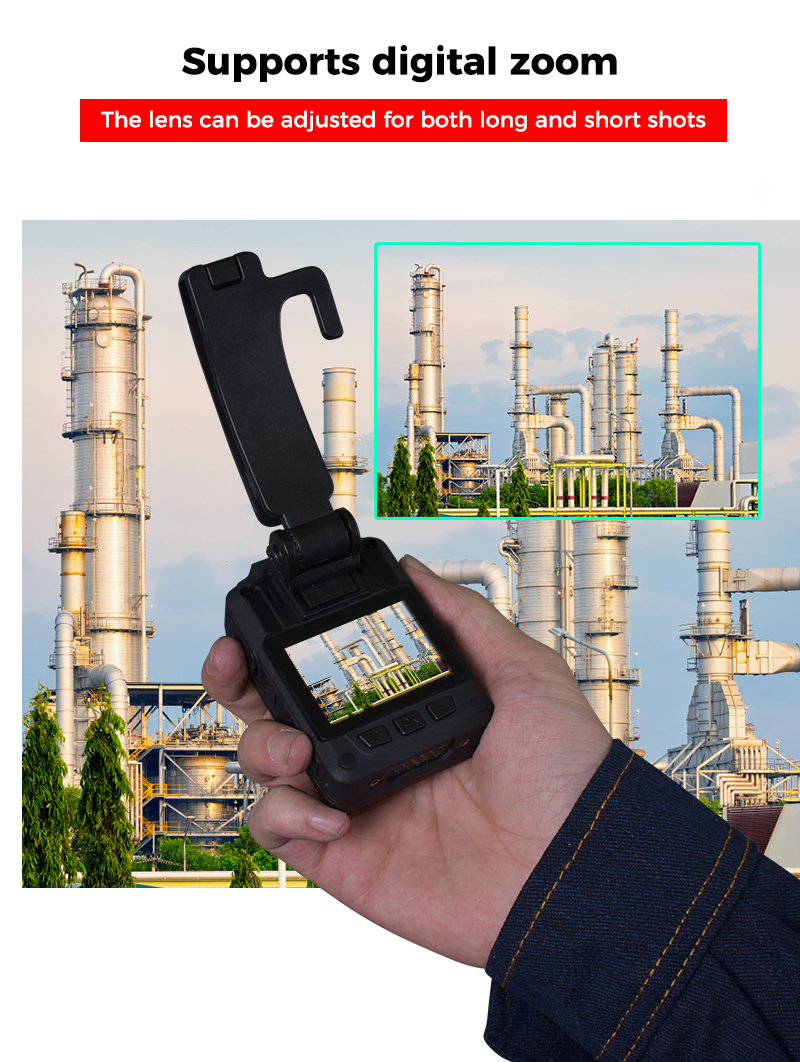

Digital zoom	The lens can be adjusted for both long and short shots and supports digital zoom
Compatible system	Windows(98/2000/ME/XP/7/8/10)
Display screen size	2-inch LCD full HD display screen
Superimposed watermark	Support
Video recording function	One-click recording (When the device is turned off, simply press the "Record" button to enter the recording process)
Video snapshot	Support
Video format	MOV/MP4/AVI
Video shooting	Supports 1296P high-definition shooting. And there are six resolutions available for selection: 23041296, 25601080, 19201080, 14401080, 1280720, and 848480. When the video resolution is 23041296, 25601080, 14401080, 720480 and 848480, the video frame rate is 30 frames per second. When the video resolution is 19201080, the video frame rate can be selected as 30 frames per second or 45 frames per second. When the video resolution is 1280720 and 848480, the video frame rate can be selected as 30 frames per second, 45 frames per second or 60 frames per second.
Video replay	When the law enforcement recorder plays back videos on this device, it has the functions of 2x, 4x, 8x, 16x, 32x, 64x, and 128x fast-forward or fast-forward rewind.
Pre-recording/Extended recording	Support. It can pre-record and extend video information for 45 minutes before and after at a resolution of 2560*1080.
Maximum recording interval time	This machine adopts an automatic segmented recording mode, with no interval in the recording time between adjacent two video segments.
Segmented video	This machine can be set with segmented videos of 5 minutes, 15 minutes, 20 minutes, 30 minutes, etc
Photo format	JPEG
Photo pixels	It supports a maximum of 50 million pixels. And the effective pixels are 94725328, 80004768, 80004500, 78084392, 73604140, 75524248, 71043996, 67203780, 64003600, 61443456, 6016*3384, and 5344 Options include 3006, 4608, 2592, 4224, 2376, 3776, 2124, and 2688.
Wide-angle lens	170°
Anti-shake function	Electronic image stabilization
Shutter control	Electronic shutter
Exposure method	Automatic
Audio format	WAV
One-click recording	Supports individual recording and dual microphone noise reduction

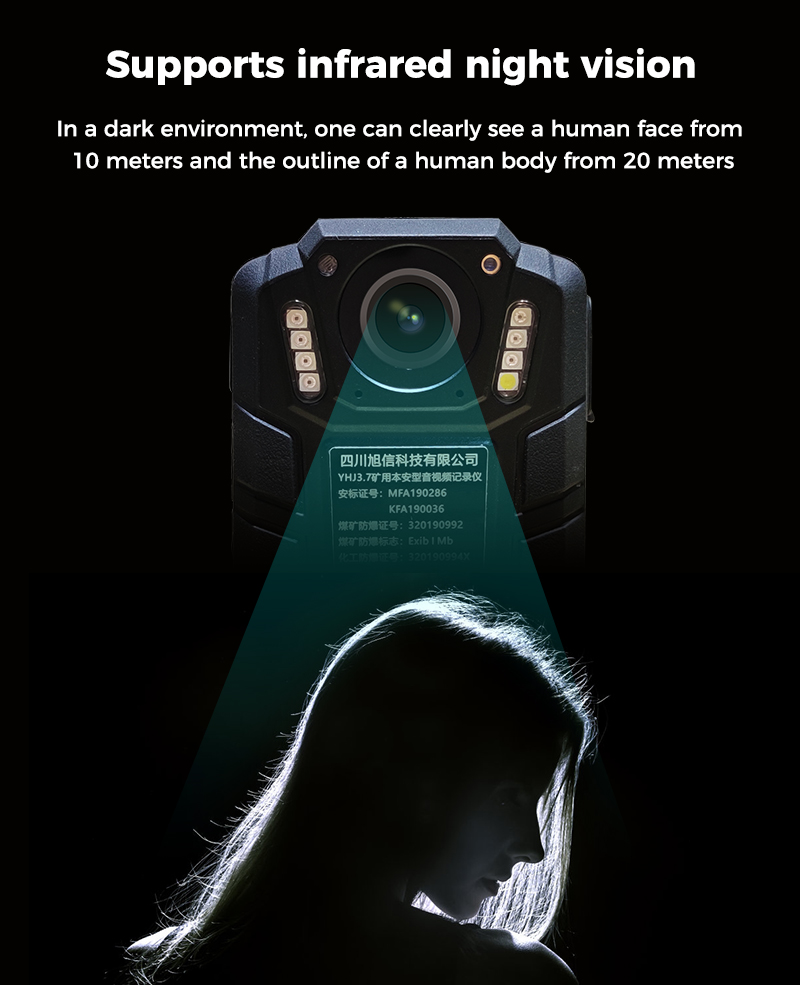

Infrared night vision	In a dark environment, one can clearly see a human face from 10 meters and the outline of a human body from 20 meters
Infrared switching	Manual/Automatic switching
Press the key to turn off the sound function	The recorder can be set with a sound for the off button
Vibration prompt off function	The recorder can be set to turn off the vibration prompt
Indicator light off function	The recorder can be set with an off indicator light

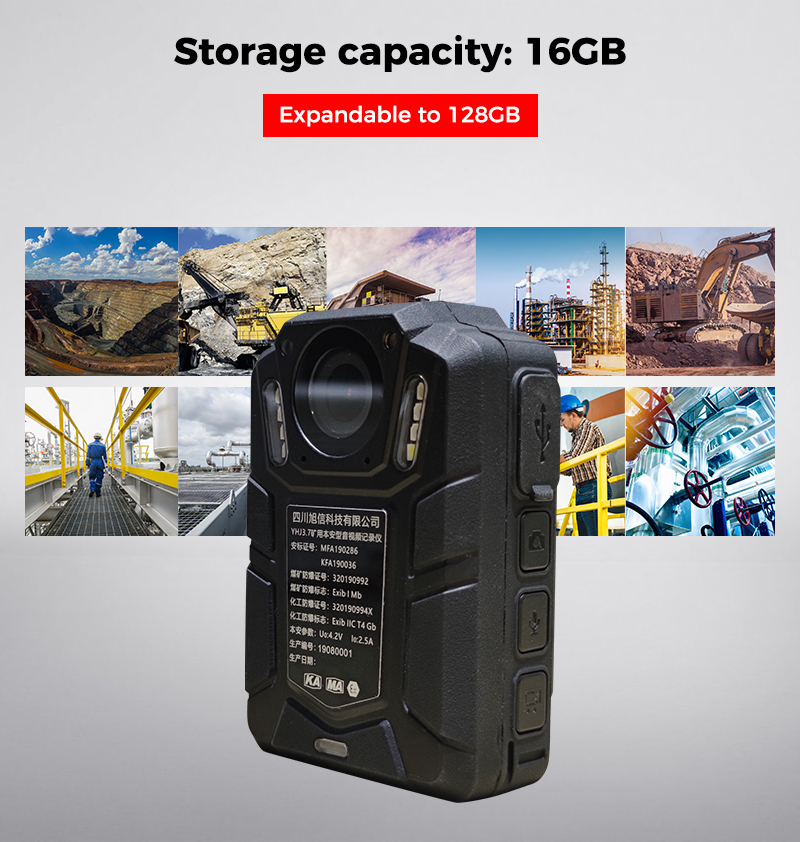

Storage capacity	16GB, expandable to a maximum of 128GB.
One-click playback	The recorder can play back the most recent video/audio/image file with one click in standby mode
File tag	The video being shot can be highlighted by pressing the corresponding keys. Highlighted files will not be automatically cleared when uploaded to the background collection station.
Password protection	Software password protection, preventing tampering and deletion
Log function	All files are attached with information such as the time, product number, and user number
Voice broadcast	When the recorder is turned on, it can announce the user number and the hour
Laser positioning	Position the shooting to keep the picture from shifting
Motion detection	After enabling the motion detection video recording function, in the viewfinder preview mode, when a moving object enters the shooting range of the recorder, the recorder will automatically start recording
White fill light function	The white fill light can be manually turned on to supplement the light, allowing for normal shooting in low-light conditions
Parameter setting	The recorder can set the video resolution, photo pixel count, etc. in the menu
Automatic save function after power failure	The recorder can automatically save the recorded files before the battery runs out and then shut down
External camera function	It can be connected to an external small camera to provide video source for this machine. The horizontal field of view of the small camera is ≥140°
Power-saving mode	The automatic screen-off and automatic shutdown times of this machine can be set.
Charging function	This machine can be charged through dedicated adapters, computer USB cable interfaces, car chargers and other charging interfaces. A car charger can be optionally equipped for this machine.

FAQ about Explosion-proof Body Worn Camera

Q1: Which system connections does the device support?

A1: Supports Windows 98/2000/ME/XP/7/8/10 systems.

Q2: What is the maximum pixel of the photo?

A2: Supports up to 50 million pixels, with multiple effective pixels to choose from.

Q3: Can the sound of the off button be set?

A3 is fine. The key sound of the recorder can be turned off in the Settings.

Q4: Will files be lost after a power outage?

A4: No. Before the battery runs out, it will automatically save the recorded files and then shut down.

Q5: Are there any field of view requirements for external cameras?

A5: Yes, the horizontal field of view of the external small camera needs to be ≥140°.
