Product Description
Introduction of Explosion-proof Smartphone

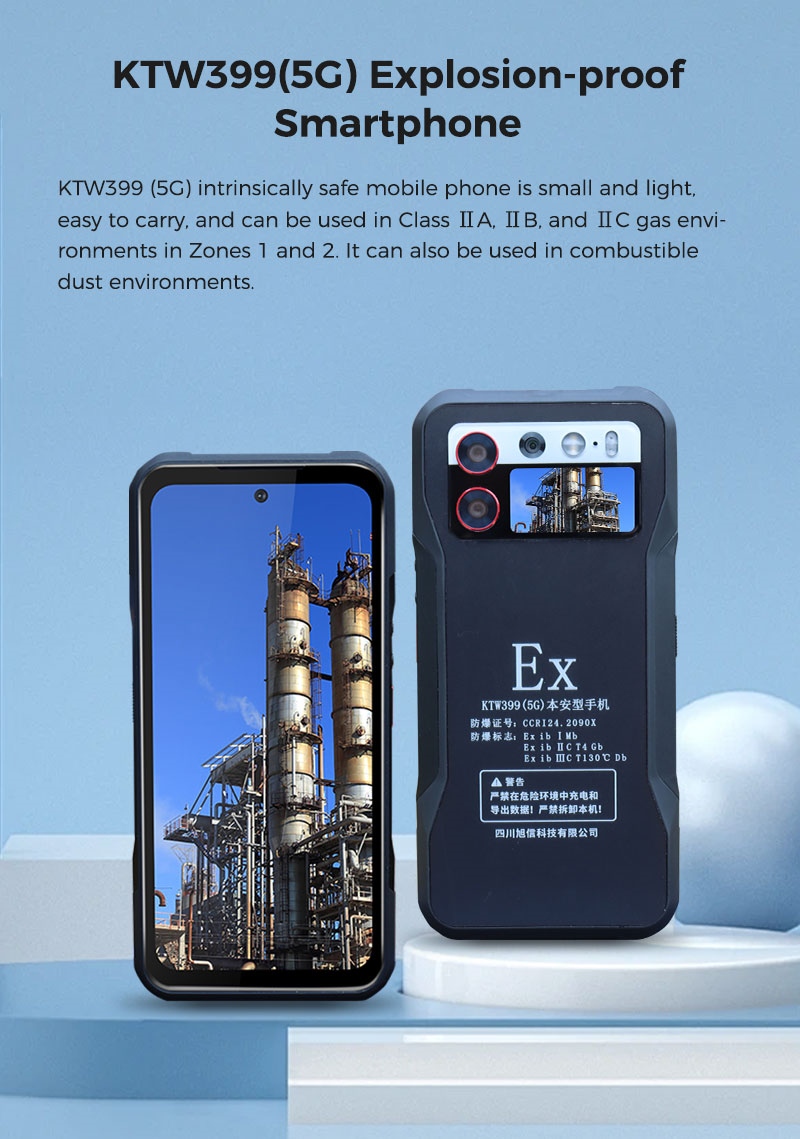

XUXIN KTW399 (5G) explosion-proof smartphone has passed the chemical and dust explosion-proof certifications. Equipped with the Dimensity 700 chip, running the Android 13 system, featuring diverse memory combinations and a built-in 6000mAh battery. It features dual AMOLED screens with a protection level of IP68. It is applicable to gas and combustible dust environments in Zone 1 and Zone 2, such as oil tank farms, chemical plants, pharmaceutical factories, oil mills, gas stations and refueling stations, etc.
Features of Explosion-proof Smartphone
1) Diverse explosion-proof marks: It has various explosion-proof marks such as Ex ib IMb, Ex ib IIC T4 Gb, Ex ib IIIC T130℃ Db, etc., which can meet the explosion-proof requirements of different hazardous environments.

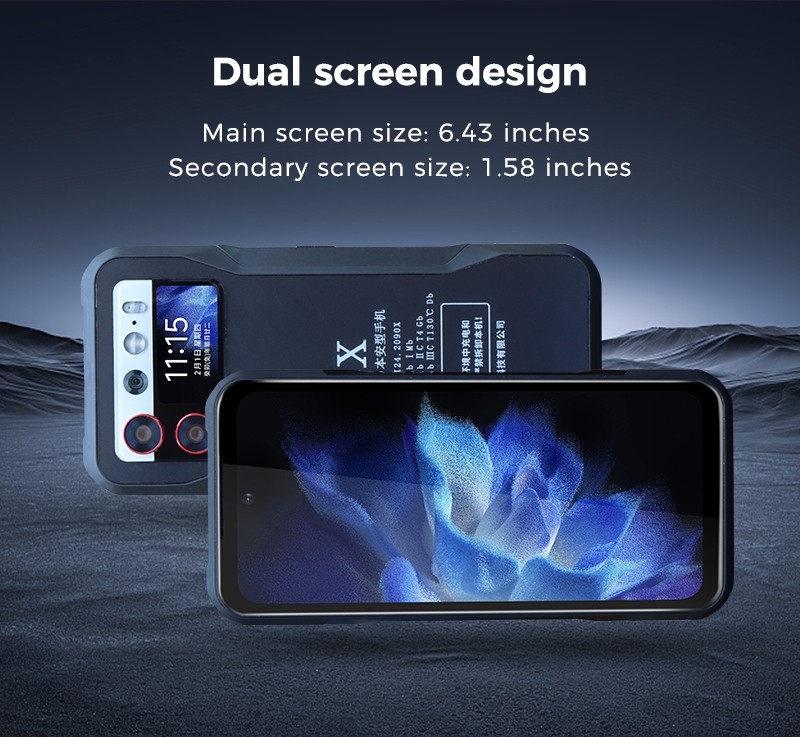

2) Outstanding screen display: A 6.43-inch AMOLED main screen paired with a 1.58-inch AMOLED secondary screen, offering rich colors and clear display.
3) Professional imaging system: Equipped with multiple high-pixel cameras, covering main cameras, wide-angle cameras, macro cameras, night vision cameras, etc., it offers rich shooting functions to meet the needs of full-scene shooting.

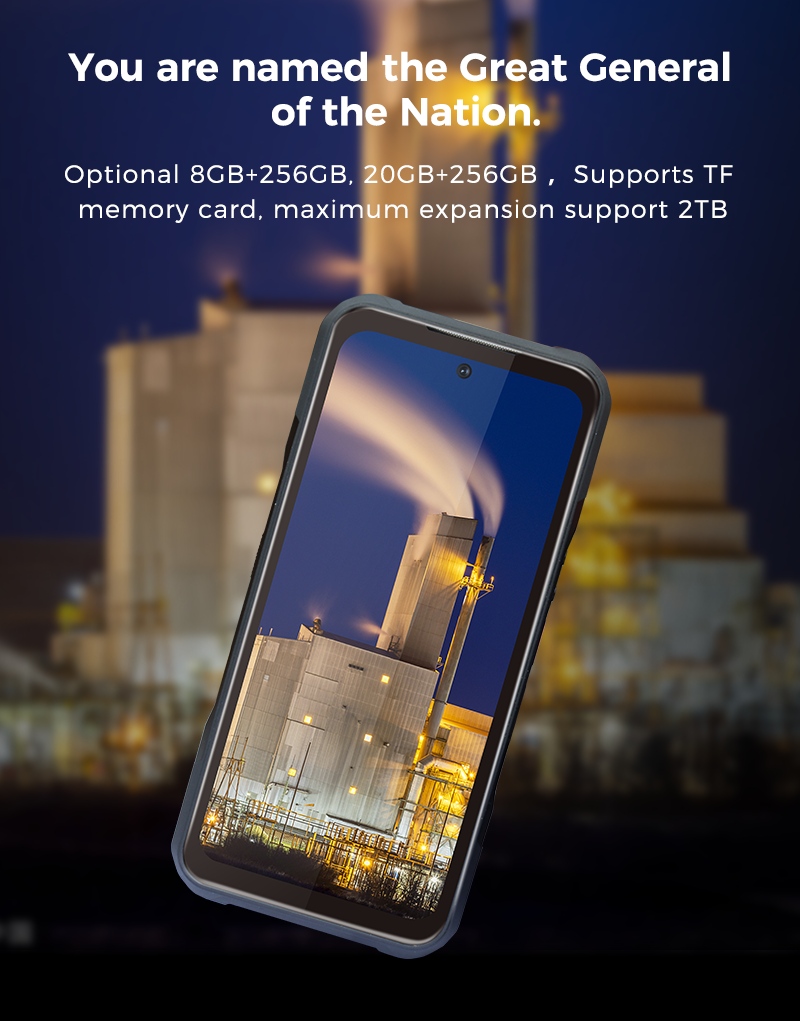

4) Large-capacity storage: The maximum memory capacity is up to 20GB + 256GB, and it supports up to 2TB TF card expansion storage.

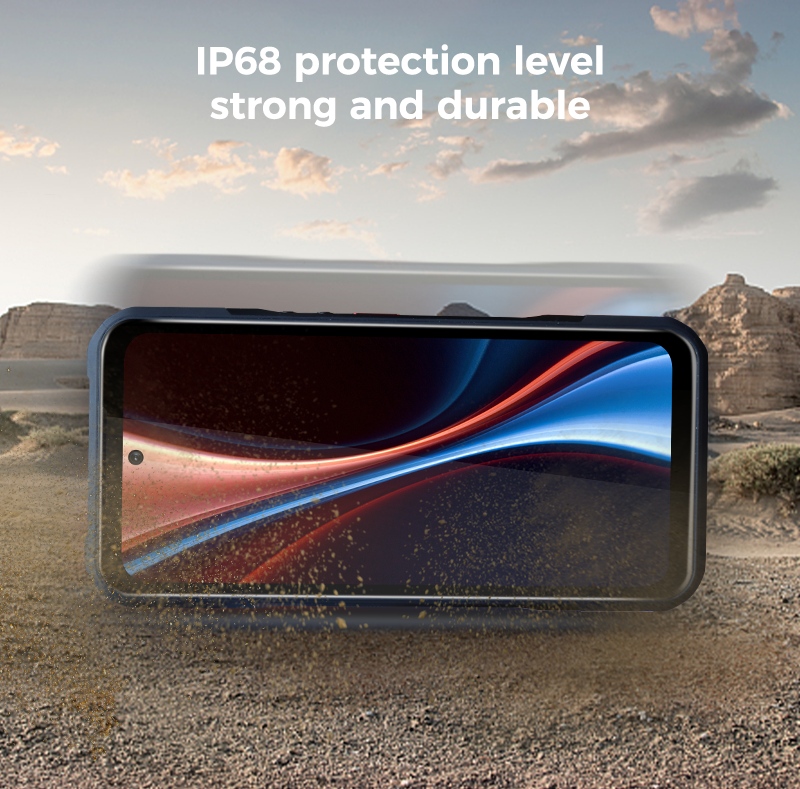

5) High protection level: The protection level reaches IP68 (1.2m, 30min), featuring excellent dust-proof and water-proof capabilities, reducing the possibility of equipment failure and explosion caused by external environmental factors (such as dust and water intrusion).
6) Hardware safety design: The overall design of the mobile phone complies with explosion-proof standards. The hardware configuration and structural design comprehensively consider explosion-proof requirements to ensure that no sparks, high temperatures or other dangerous factors that may cause explosions are generated when it is used normally in hazardous environments.
7) Rich functional configuration: Supports Bluetooth 5.1, NFC, and OTG, features side fingerprint and face recognition, and has a diverse positioning system with complete sensors.

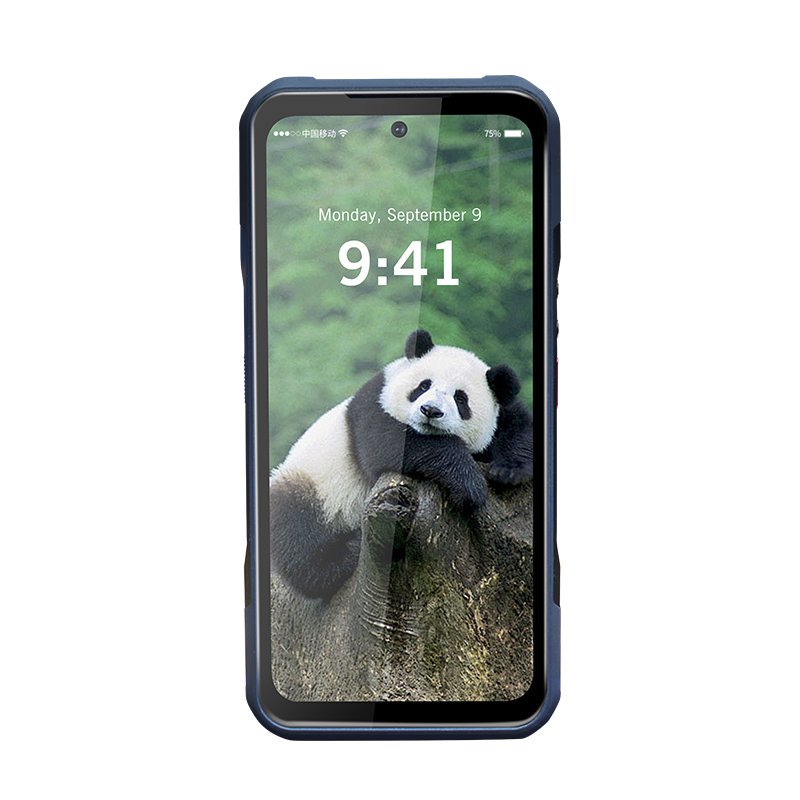

Detail photos of Explosion-proof Smartphone
Product parameters of Explosion-proof Smartphone
| Product model | KTW399(5G) | ||
| Explosion proof mark |
Ex ib I Mb Ex ib IIC T4 Gb； Ex ib IIIC T130℃ Db； |
||
| Network standard | GSM/WCDMA/CDMA/FDD/TDD/SA/NSA | ||
| Network frequency band |
NR: N1/3/5/7/8/20/28/38/40/41/77 78/79 FDD: B1/2/3/4/5/7/8/12/13/17/18/ 19/20/25/26/28A/28B/66 TDD: B34/38/39/40/41 WCDMA: B1/2/4/5/6/8/19 CDMA: BC0/BC1/BC10 GSM: B2/3/5/8 |
||
| CPU model | MT6833 Dimensity 700 | ||
| CPU core | 2x ARM Cortex-A76 2.2GHz 256KB L2、6x ARM Cortex-A55 2.0GHz 128KB L2、1MB L3 | ||
| Processor technology | 7nm | ||
| GPU model | Arm Mali-G57 MC2 | ||
| Operating system | Android 13 | ||
| Main screen | Screen type | AMOLED | |
| Screen size | 6.43 inches | ||
| resolving power | 2400 × 1080 pixels | ||
| screen color | 16.7 million colors | ||
| Pixel density | 409PPI | ||
| Screen aspect ratio | 20:9 | ||
| Screen to body ratio | 84.89% | ||
| brightness | 500cd/m2 | ||
| contrast ratio | 80000:1 | ||
| Touch | Multi touch | ||
| IC | GT9885 | ||
| Secondary screen | Screen type | AMOLED | |
| Screen size | 1.58 inches | ||
| resolving power | 460*228 | ||
| screen color | 16.7 million colors | ||
| Pixel density | 325PPI | ||
| Screen aspect ratio | 2:1 | ||
| Screen material | Panda Glass | ||
| IC | FT3168 | ||
| contrast ratio | 10000:1 | ||
| Front camera | sensor chip | OmniVision OV20880 | |
| Sensing area | 1/3.1inch 5P | ||
| Pixel size | 5184*3888 20M | ||
| aperture | F/2.0±5% | ||
| Field of view angle | 75.5°(Diag) | ||
| focus mode | FF | ||
| Shooting function | Video, Picture, Potrait, GIF, Beauty, Anti flicker, Filter, Film mode, Mirror | ||
| Rear Camera | main camera | sensor chip | OmniVision OV50C |
| Sensing area | 1/2.5 inch 5P | ||
| Pixel size | 8192*6144 50M | ||
| aperture | F/1.8±5% | ||
| Field of view angle | 78.83°(Diag) | ||
| focus mode | AF | ||
| flash lamp | support | ||
| Shooting function | HDR, AI camera, Night Mode, Video, Picture, Pro Mode (adjustable parameters), Portrait, GIF, Panorama, Intelligent Scanning, Beauty, Anti flicker, Slow motion, Film mode, Time Lapse, Filter | ||
| Wide angle+macro camera | sensor chip | Samsung S5K4H8YX | |
| Sensing area | 1/4inch 5P | ||
| Pixel size | 8M 3264*2448 | ||
| aperture | F/2.2±5% | ||
| Field of view angle | 118.8°(Diag) | ||
| focus mode | AF | ||
| Shooting function | Picture, Brand watermark, Filter, Anti flicker, Macro, Wide Angle | ||
| Night vision camera | sensor chip | OmniVision OV24A1B-rev-1B | |
| Sensing area | 1/2.83inch 6P | ||
| Pixel size | 24M 5664*4248 | ||
| aperture | F/1.8±5% | ||
| Field of view angle | 78°(Diag) | ||
| focus mode | AF | ||
| Shooting function | Video, Picture, Anti flicker, Filter | ||
| Image format | JPEG、BMP、GIF、PNG etc | ||
| Video format | MP3、M4A、AAC、MKA、AMRALAC(Apple Lossless)、FLAC、APE、WAV | ||
| Size | 171mm×81.70 mm×14.60mm | ||
| weight | Approximately 296g (including battery) | ||
| SIM card | Nano SIM+Nano SIM Or Nano SIM+TF card | ||
| Bluetooth | BT 5.1 | ||
| Data/charging interface | USB Type-c | ||
| Headphone jack | Type-C to 3.5mm headphone jack | ||
| Horn | 1217BOX AAC | ||
| Motor | 1027 Flat Motor | ||
| Receiver | 0809 waterproof earpiece | ||
| Microphone | AAC Silicon microphone | ||
| WLAN | WLAN protocol | 802.11 a/b/g/n | |
| WLAN frequency | Supports 2.4G and 5.0G | ||
| WLAN hotspot | support | ||
| NFC | support | ||
| OTG | support | ||
| Fingerprint identification | Support (side fingerprint) | ||
| Facial recognition | support | ||
| Location | Beidou、Galileo、Glonass、GPS | ||
| Side keys | Power button | ||
| Volume+/- key | |||
| Customize buttons | |||
| Gravity sensor | support | ||
| Distance sensor | support | ||
| Environmental light sensor | support | ||
| Compass | support | ||
| Ground pool | support | ||
| Gyroscope | support | ||
| Barometer | support | ||
| Compass | support | ||
| Memory |
8GB+256GB 12GB+256GB 20GB+256GB |
||
| Expand storage | TF memory card, with a maximum expansion support of 2TB | ||
| Battery | 6000mAh intrinsic safety lithium battery (built-in) | ||
| Working temperature | -20℃～+50℃ | ||
| Relative humidity | ≤98%（25℃） | ||
| Atmospheric pressure | 80 kPa～106kPa | ||
| Storage temperature | -40℃～+60℃ | ||
| Applicable places | Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments | ||
| Protection level | IP68（1.2m，30min） | ||
FAQ related to the KTW399 (5G) explosion-proof smartphone:
Q1: What does the explosion-proof mark of the KTW399 (5G) explosion-proof smartphone mean and in which environments can it be used?
A1: The explosion-proof marks of this mobile phone are Ex ib IMb, Ex ib IIC T4 Gb, and Ex ib IIIC T130℃ Db. Ex represents the explosion-proof mark, ib is intrinsically safe type, I is suitable for coal mine gas environment, IIC is suitable for Class II explosive gas environment other than coal mine gas, and IIIC is suitable for combustible dust environment. T4 and T130℃ respectively represent the surface temperature groups of the equipment. Mb, Gb and Db are the protection levels of devices. It can be used in Zone 1 and Zone 2, gas environments of Class IIA, IIB and IIC, as well as combustible dust environments.
Q2: The KTW399 (5G) explosion-proof smartphone has a rich variety of network standards. How does its network speed perform under different networks?
A2: the phone supports GSM/WCDMA/CDMA/FDD/TDD/SA/NSA and other network systems. Under 5G networks (SA/NSA), if the network environment is good, theoretically, high download and upload speeds can be achieved to meet the demand for rapid data transmission. Under other network standards, the network speed may vary according to the standards of the corresponding network and the actual environment, but it can still meet the basic communication and data usage needs in daily life.
Q3: The battery capacity of the KTW399 (5G) explosion-proof smartphone is 6000mAh. How long does it take to fully charge it?
A3: The charging time of a mobile phone is affected by various factors such as the power of the charging device, the remaining battery power, and the phone's usage status. Generally speaking, with the standard charger, it takes about 2 to 3 hours to fully charge a 6000mAh battery when the phone's battery is depleted and the screen is off.
Q4: The KTW399 (5G) explosion-proof smartphone supports multiple positioning systems. How accurate is its positioning in actual use?
A4: This mobile phone supports multiple positioning systems such as Beidou, Galileo, Glonass and GPS. In an open outdoor environment, multiple positioning systems work in coordination, and the positioning accuracy can usually reach within several meters, which can meet the needs of navigation, location check-in, etc. However, in indoor areas or regions with severe signal obstruction, the positioning accuracy may decline.

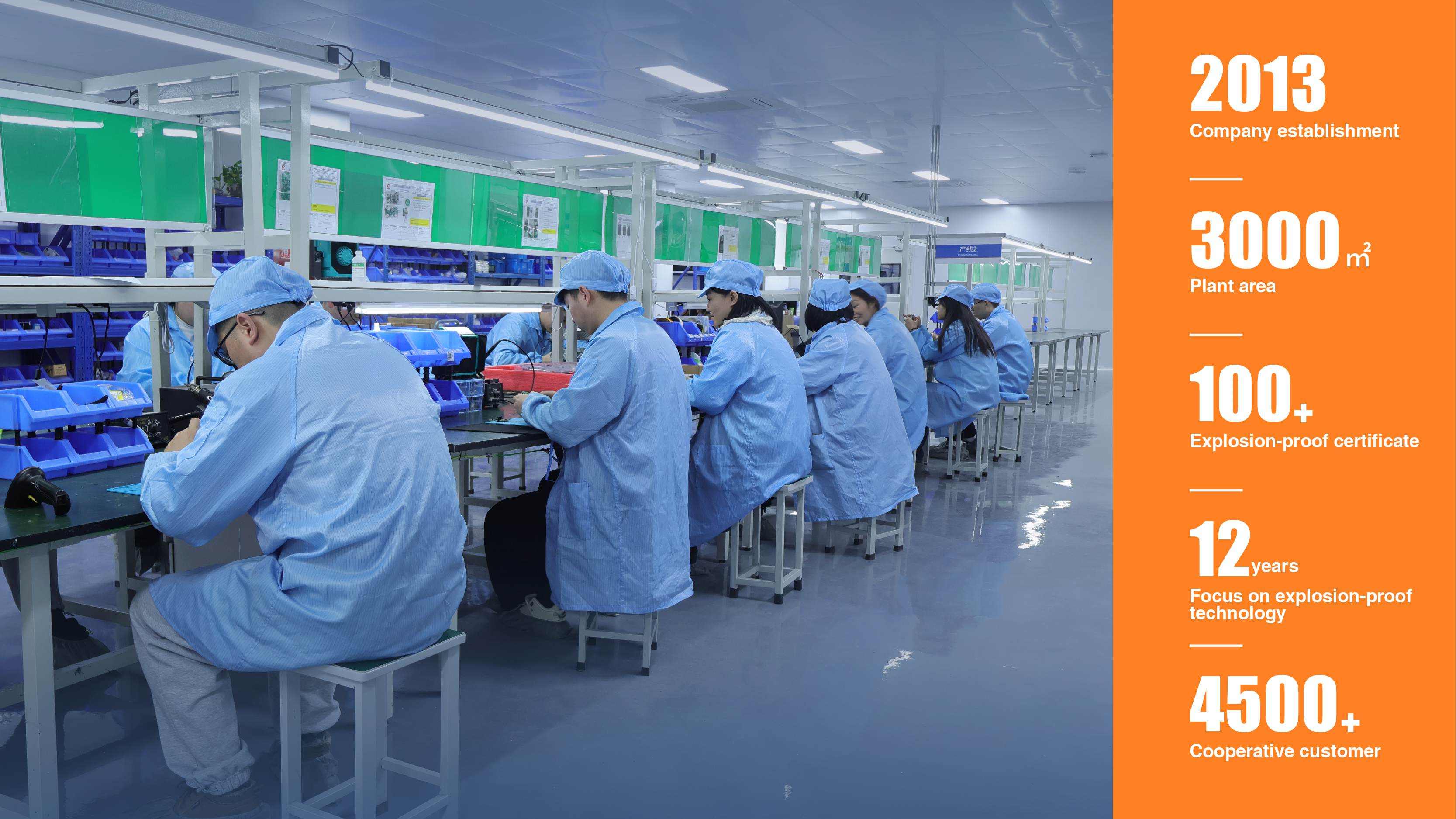

Company Profile
