Product Description
Introduction of Explosion-proof walkie-talkie

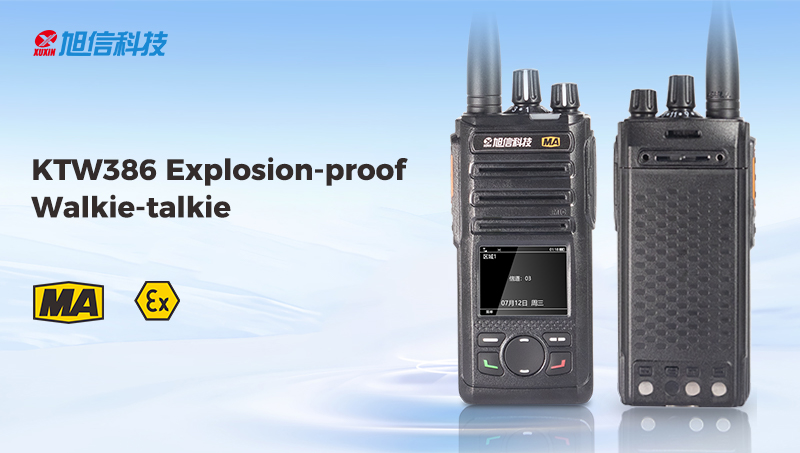

XUXIN KTW386 explosion-proof walkie-talkie is a professional communication device designed specifically for high-risk environments. It has passed certification for coal mine, chemical, and dust explosion prevention, and can be safely used in underground coal mines, chemical plants, oil tank areas, gas stations, pharmaceutical factories, and flammable dust environments, providing reliable communication support for complex hazardous scenarios.
Features of Explosion-proof walkie-talkie
1)Excellent performance: Long intercom distance, up to 1-3 kilometers outdoors, strong and stable signal penetration; The 2200mAh large capacity battery is designed with a split battery for long-lasting endurance. If the battery is damaged, it can be replaced separately to avoid the whole machine being scrapped.
2) Clear communication: The call quality is clear and loud, with intelligent noise reduction function, and also supports voice encryption to ensure information security; DMR digital dual slot technology and voice broadcasting function improve communication efficiency and convenience.
3) Rich features: with 256 channels, supporting voice control function and ultra long recording (optional over 200 hours, customizable memory card) and playback; Capable of both digital and analog modes, compatible with multiple modulation methods and digital protocols.

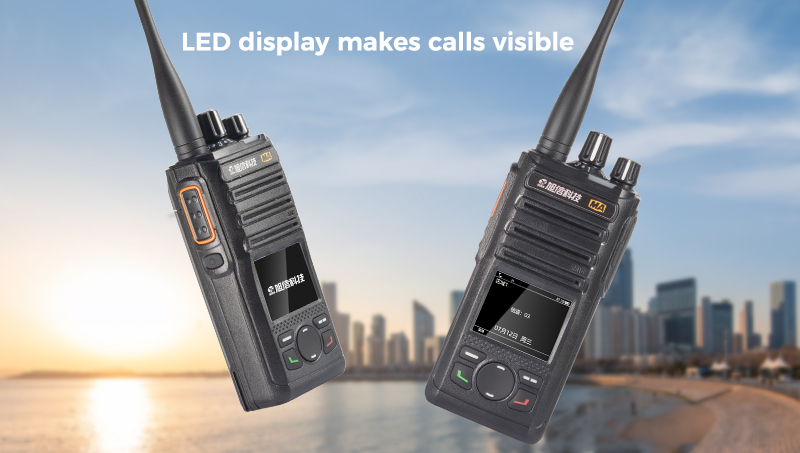

4)Portable and easy to use: The body is compact, with dimensions of 132.8mm × 53.8mm × 32.3mm and a weight of approximately 149.4 grams, making it easy to carry; The 1.77-inch LED display screen intuitively displays call information.
5)Reliable and durable: With a protection level of IP66, it can adapt to harsh environments such as -20 ℃ to+50 ℃ working temperature and ≤ 95% (25 ℃) relative humidity, ensuring stable operation of the equipment.

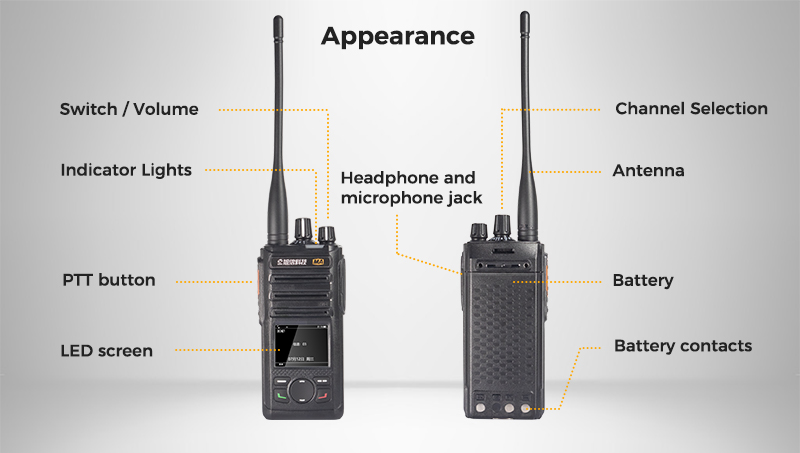

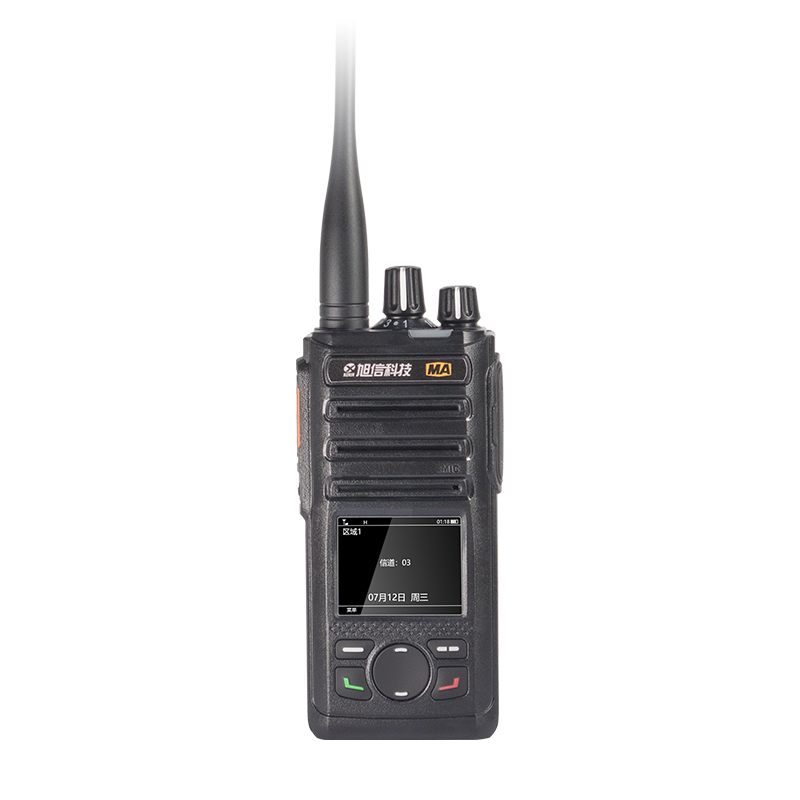

Detail photos of Explosion-proof walkie-talkie
Product parameters of Explosion-proof walkie-talkie
| Explosion proof type | Intrinsically Safe |
| Explosion proof sign | Ex ib I Mb，Ex ib IIB T4 Gb，Ex ib IIIB T130℃ Db |
| Frequency range | 400-480MHz |
| Number of regular channels | 256 channels (16 regions, 16 channels per region) |
| Channel Spacing | Simulation: 12.5KHz/25KHz Digital: 12.5KHz |
| Screen size | 1.77 inches, resolution 160 * 128 |
| Antenna impedance | 50Ω |
| Microphone impedance | 2.2KΩ |
| Size | 132.8mm×53.8 mm×32.3mm |
| Weight | Approximately 149.4 grams |
| Recording (optional) | >200 hours (customizable memory card) |
| Voice Announcements | support |
| DMR digital dual slot technology | support |
| Voice encryption function | support |
| Voice control | support |
| RF POWER | ≤3.5W |
| Modulation Type | 25K/16KφF3E 12.5K/8KφF3E |
| 4FSK digital modulation | 12.5KHZ data 7K60FXD 12.5KHZ data and voice 7K60FXW |
| ToneBytes Wowcoder VST | AMBE++or SELP |
| Digital Protocol | ETSI-TS102 361-1,-2 |
| Noise and harmonics | ≧70dB |
| Residual FM | 25K≤-45dB 12.5K≤-40dB |
| Audio Distortion | ≤5% |
| Frequency stability | ±1.5 ppm |
| Maximum Frequency Deviation | 25K≤5kHz 12.5K≤2.5kHz |
| Sensitivity (12dB SINAD) | 25K≤-121dBm 12.5K≤-119dBm |
| Signal to Noise Ratio | 25K≥45dB 12.5K≥40dB |
| Adjacent channel selectivity | 25K≥65dB 12.5K≥60dB |
| Intermodulation Rejection | 25K≥60dB 12.5K≥55dB |
| Spurious response | ≥65dB |
| Audio output | ≥1000mW |
| Sensitivity numbers | 0.22μV/BER5% |
| Audio Distortion | ≦5% |
| Frequency stability | ±1.5ppm |
| Intelligent noise reduction | support |
| Recording | Ultra long recording, supports digital/analog recording, and supports recording playback. |

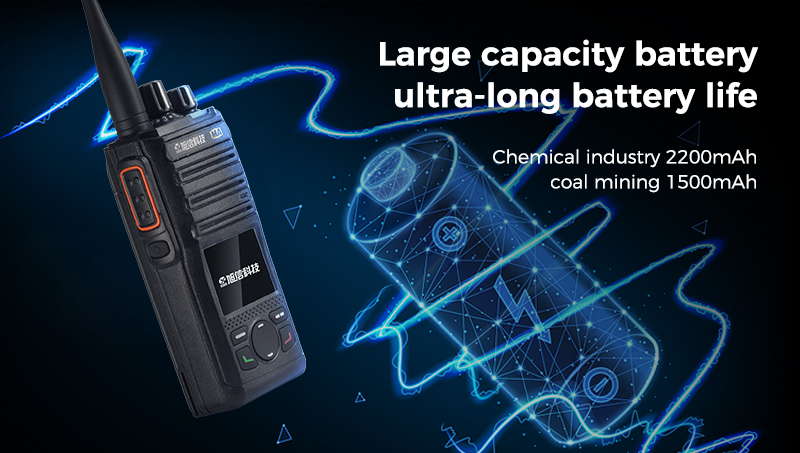

| Battery | Chemical 2200mAh, coal mine 1500mAh |
| Work Environment | |
| Temperature | -20℃～+50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Application | Can be used in Zone 1 and Zone 2, Class IIA and IIB gas environments, underground coal mines with explosive mixtures such as methane and coal dust, and can also be used in combustible dust environments. |
FAQ about Explosion-proof walkie-talkie
Q1: What specific hazardous environments are KTW386 intrinsically safe intercoms suitable for?
A1: KTW386 has passed multiple explosion-proof certifications and can be safely used in coal mines, chemical plant zones 1 and 2, oil tank areas, gas stations, pharmaceutical factories, and other places. It is suitable for Class IIA and IIB gas environments and combustible dust environments. Whether it is a coal mine containing explosive mixtures such as methane and coal dust, or a chemical production area with strict requirements for explosion prevention, it can work stably.
Q2: How far can the intercom distance of this walkie talkie reach in actual use?
A2: In outdoor open environments, the intercom distance of KTW386 is 1-3 kilometers. However, in actual use, the intercom distance may be shortened due to obstacles such as buildings and terrain. For example, in urban blocks with high-rise buildings or complex mountains, communication distance will correspondingly decrease.
Q3: What are the advantages of designing split cell batteries? How is it different from traditional all-in-one batteries?

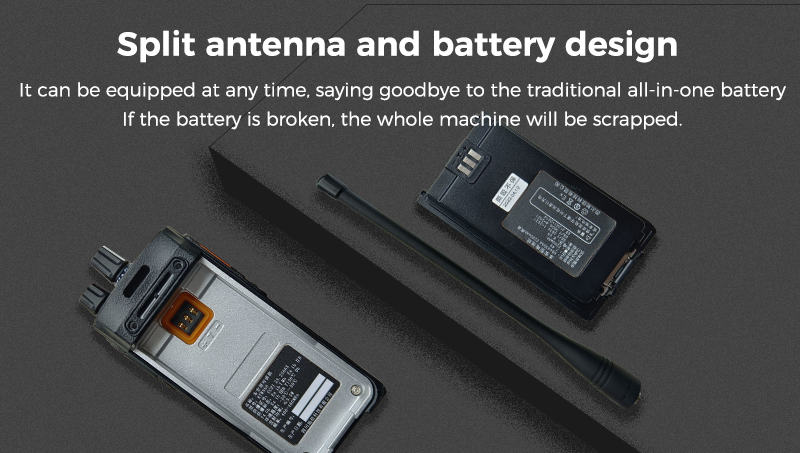

A3:The split battery design allows for the addition of batteries at any time. When the battery fails, it only needs to be replaced without scrapping the entire machine, greatly reducing the cost of use. Once the traditional all-in-one machine battery is damaged, it often requires replacing the entire walkie talkie, which not only incurs high costs but also affects normal use.
Q4: What should I do if I encounter equipment failure during use?
A4: If the device malfunctions, you can first refer to the troubleshooting guide in the product manual and try to solve it yourself. If the issue cannot be resolved, you can contact the brand after-sales service center and provide the product serial number and fault details. Professional after-sales personnel will assist with repairs or provide solutions to ensure the normal use of the equipment.
