Product Description
Introduction of Outdoor Rugged Phone
This outdoor rugged phone is made of ABS+PC material, equipped with an MT6789 octa-core processor, 8+128GB storage (256GB is optional), and a 6.56-inch TFT screen that supports operation with wet hands or gloves. Equipped with a 48MP main camera and three other cameras, it features a 5800mAh battery and 33W fast charging, providing approximately 17.5 hours of battery life. It has passed certifications such as IP68 and MIL-STD-810H, is resistant to drops from 1.5 meters, can operate within the temperature range of -20 to 60℃, and supports functions such as NFC and multiple sensors.
Feature of Outdoor Rugged Phone
1) 1.5-meter drop resistance + IP68 and other certifications, stable operation within -20 to 60℃, suitable for complex environments
2) Equipped with a 5800mAh large battery and 33W fast charging, it offers approximately 17.5 hours of battery life and can be charged in just 1 hour and 50 minutes
3) MT6789 octa-core + 8+128GB, paired with Android 14, runs smoothly
4) 48MP main camera + 8MP wide-angle + 2MP macro, meeting the shooting needs of multiple scenarios
5) Supports wet hand/glove operation, with dual customizable buttons, practical and convenient

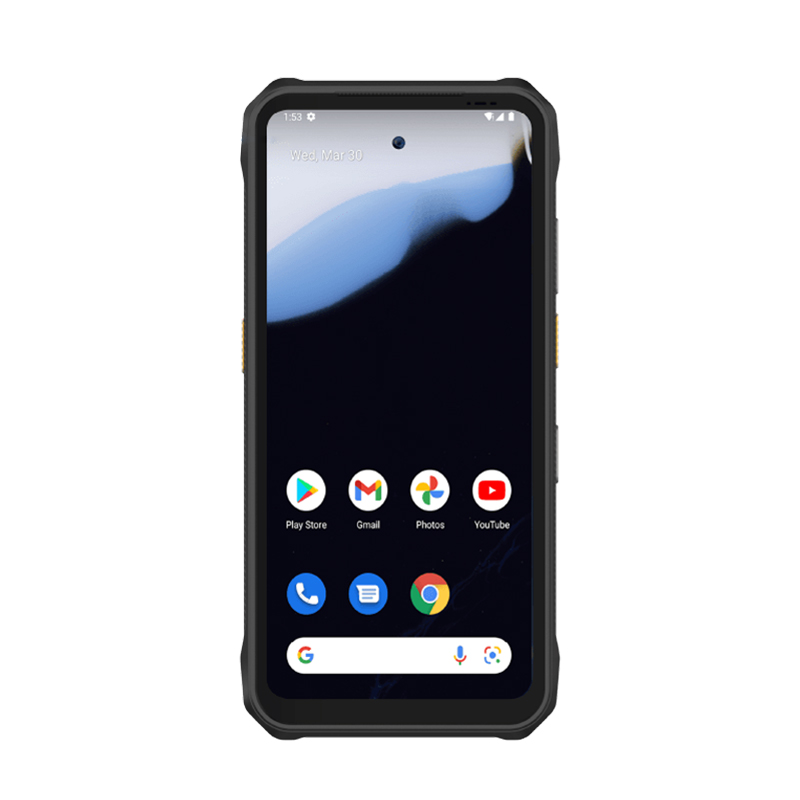

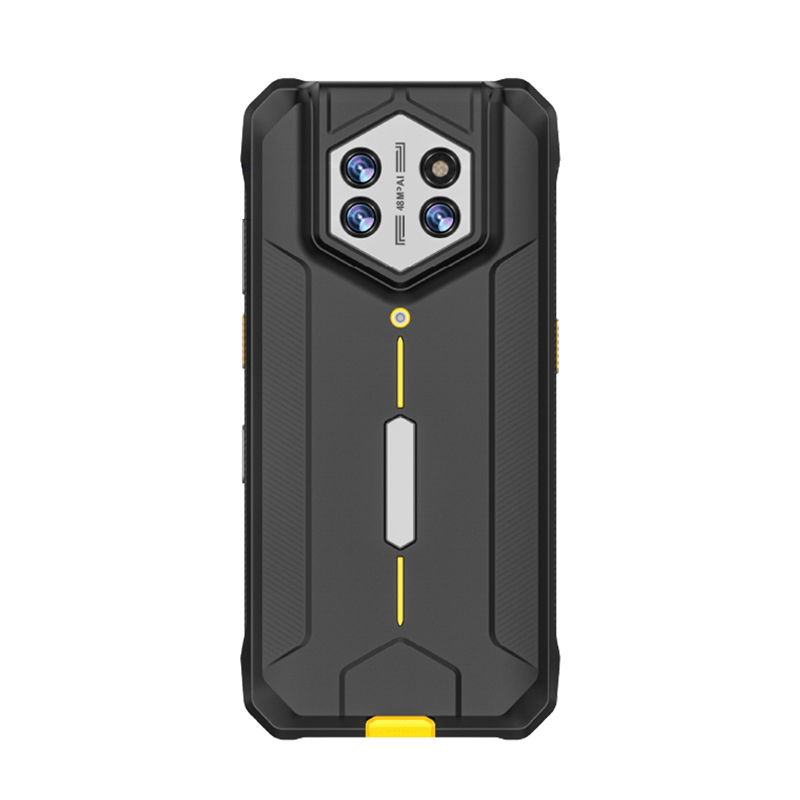

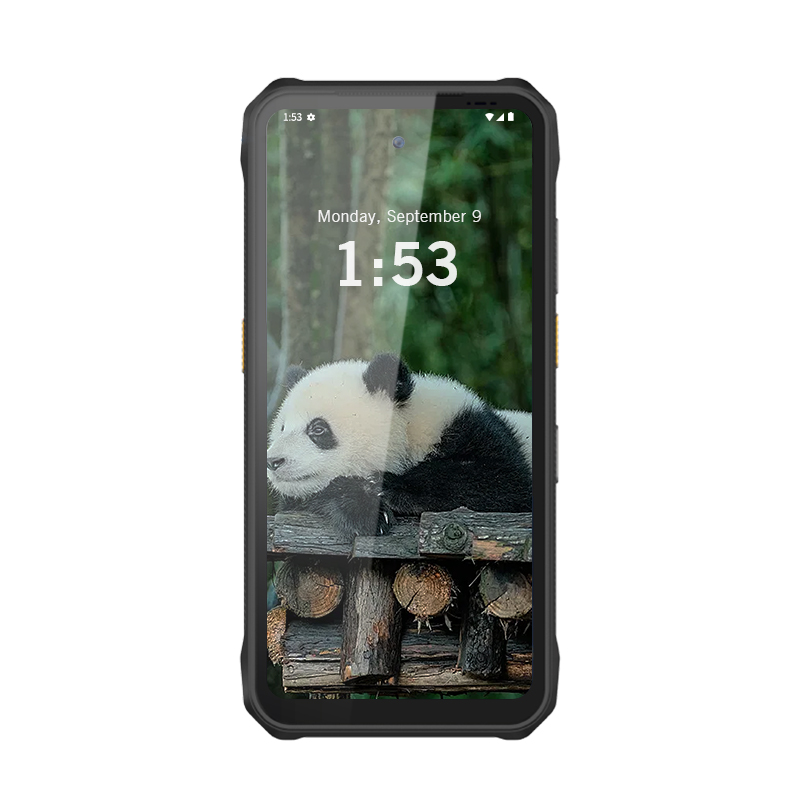

Detail photos of Outdoor Rugged Phone
Product parameters of Outdoor Rugged Phone
| Tech Spec | |
| Product Form | Rugged Phone |
| Material | ABS+PC |
| Dimension | 170.2*80.7*14mm |
| Weight | Approximately 311g |
| Product Color | Black+Orange |
| CPU |
MT6789 Octa-core, two cores of 2.2GHz + six cores of 2.0GHz 2*A76 2.2GHz 6*A55 2.0GHz |
| GPU | ARM G57 MC2 |
| Memory |
RAM 8GB LPDDR4X ROM 128GB UFS2.2 (Optional 8+256GB for bulk orders.) |
| Operating System | Android 14/ GMS |
| Display |
Type: TFT Size: 6.56-inch 20:9 Resolution: 720*1612 Brightness: 670 Nit Support wet hands and gloves operation. |
| Touch Pannel | PolyRainbow Cover, 5-point capacitive screen, Hardness above 7H, Scratch-resistant. |
| Camera |
Front 32MP, Fixed Focus Rear Main Camera 48MP, Autofocus, Supports PDAF Rear Secondary Camera1 2MP Macro Rear Secondary Camera2 8MP Wide-angle |
| Flashlight | True Flash |
| Buttons |
Power & Fingerprint *1 Volume + Key *1 Volume - Key *1 Custom button *2 （The default custom button on the left is: press and hold for 3s to turn on the top flashlight, click to turn off the flashlight） |
| Indicator Light | Indicator light *1, R/G dual-color light: Red constant when charging, green constant when fully charged (above 90%), red flashing when low battery (0-15%), off when discharging. |
| Audio |
Speaker*1 7Ω/1.5W Earphone*1 Dual-MIC Motor*1 Audio SMART PA |
| Sensor |
Light Sensor Proximity Sensor 3D Accelerometer Geomagnetic Sensor Gyroscope Gravity Sensor |
| Battery |
Built-in Polymer Lithium-ion Battery 3.85V/5800mAh Charging Power: 33W/PD 3.0 PPS Protocol Battery Life：Approximately 17h24min（The default volume is 70dB, Default 300 nits brightness; Playing 1080P HD video) Charging time：Approximately 1h50min |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G Dual-band WIFI, Supports AP seamless roaming |
| Bluetooth | BT5.1 (BLE) class1 Transmission Distance: 30m |
| 4G | GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDD(B34/38/39/40/41)+FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20//25/26/28A/28B/30/66) |
| GPS |
Supports GPS/Beidou/Galileo/GLONASS Supports AGPS Cold Start Time: <60 seconds |
| I/O Interfaces | Type C *1 (Charging/Data/Earphone/Reverse charging 6W) |
|
TF Card*1 SIM Card *2 2 of 3 card slot (Nano Sim+TF or Nano Sim+Nano Sim) |
|
| Pogo Pin (Charging) *1 | |
| Power Adapter | 33W Fast Charge Adapter |
| Type-C Cable | Type-C Data Cable（1m） |
| Rugged Features | Drop Height: Withstands drops from 1.5 meters onto composite wood flooring, while powered on. |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Electrostatic Discharge: Contact Discharge ±8KV, Air Discharge ±12KV | |
| OVP: Threshold 12V | |
| EOS: VBUS 300/80us VBAT 300v/20us | |
| Certifications | IP68 |
| CE | |
| CCC | |
| FCC | |
| ATEX Zone 2/22 | |
| MIL-STD-810H | |
| Data Collection |
Fingerprint Power On/Off & Fingerprint 2-in-1，Support fingerprint unlocking |
|
Flashlight 1W（The default custom button on the left is: press and hold for 3s to turn on the top flashlight, click to turn off the flashlight） |
|
|
NFC Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance，Card reading distance from 0 to 4 cm,Frequency: 13.56MHz |
|
| Accessories | Hand Strap (Standard) |
| 33W Fast Charge Adapter (Standard) | |
| 1m Type-C Cable (Standard) | |
| Tempered Glass Film (Optional) | |
| Docking Charger 5V2A (Optional) | |
| Bicycle mobile phone holder (half pack and full pack) (optional) | |
FAQ about Outdoor Rugged Phone
A1: What is the water resistance level of the mobile phone?
Q1: Supports IP68-level water and dust resistance, suitable for dusty and humid environments.
A2: How long does it take to fully charge?
Q2: Approximately 1 hour and 50 minutes, supporting 33W PD 3.0 PPS fast charging protocol.
A3: Can the storage be expanded?
Q3: Supports TF card expansion and dual SIM card options (Nano SIM+TF or dual Nano SIM).
A4: What is the working temperature range?
Q4: It can operate stably in both low-temperature and high-temperature environments ranging from -20℃ to 60℃.
A5: Does the screen support operation while wearing gloves?
Q5: Supported. The screen supports glove operation and is also suitable for wet hand operation.
