Product Description
Introduction of Rugged Field Service Tablet
XUXIN E-187 Rugged Field Service Tablet is designed for harsh environments such as industrial applications, with excellent durability and performance. It is made of high-strength, wear-resistant materials such as metal shells and reinforced frames to ensure good performance even in harsh environments. At the same time, the buttons and interfaces of the tablet are specially designed to prevent dust and moisture from entering.
Feature of Rugged Field Service Tablet
1) Adopting a compact design, it is easy to carry and operate.
2) Equipped with high-performance processors and large capacity memory to ensure smooth running speed when handling complex tasks.
3) Supports multiple operating systems, such as Windows 10, to meet the needs of different users. These operating systems provide rich applications and features, making it convenient for users to perform various on-site service operations.
4) Adopting high-resolution and high brightness display screens to ensure clear display of images and information under various lighting conditions.
5) Featuring IP68 dust and water resistance, it can maintain normal operation in harsh outdoor environments.

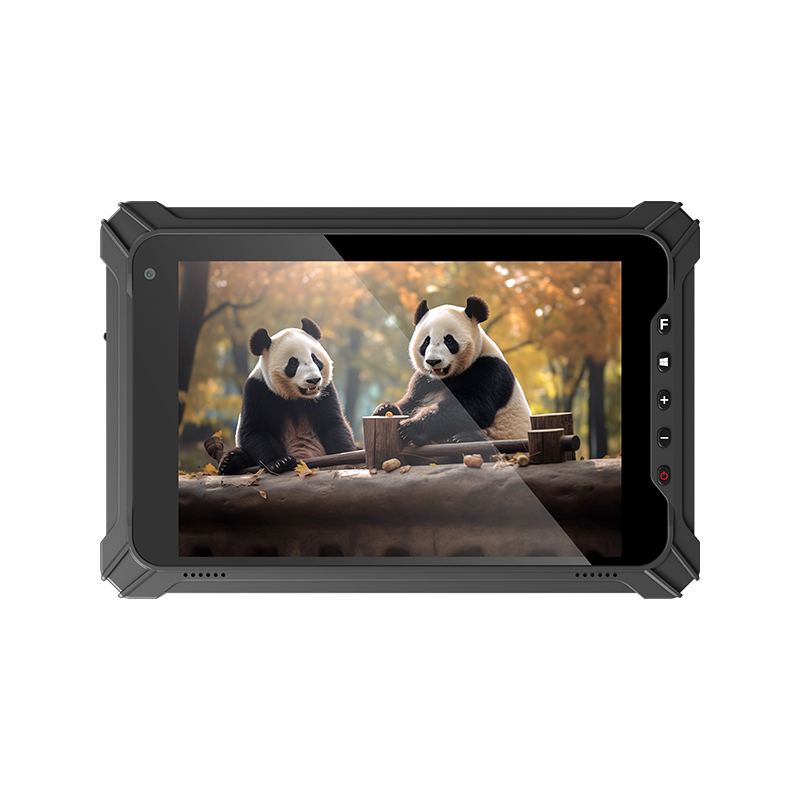

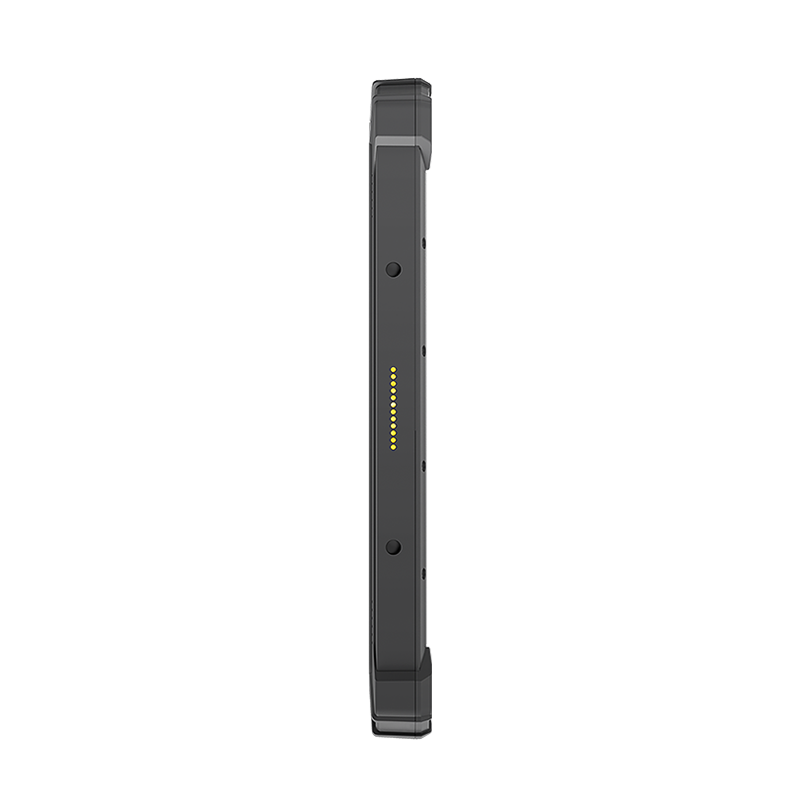

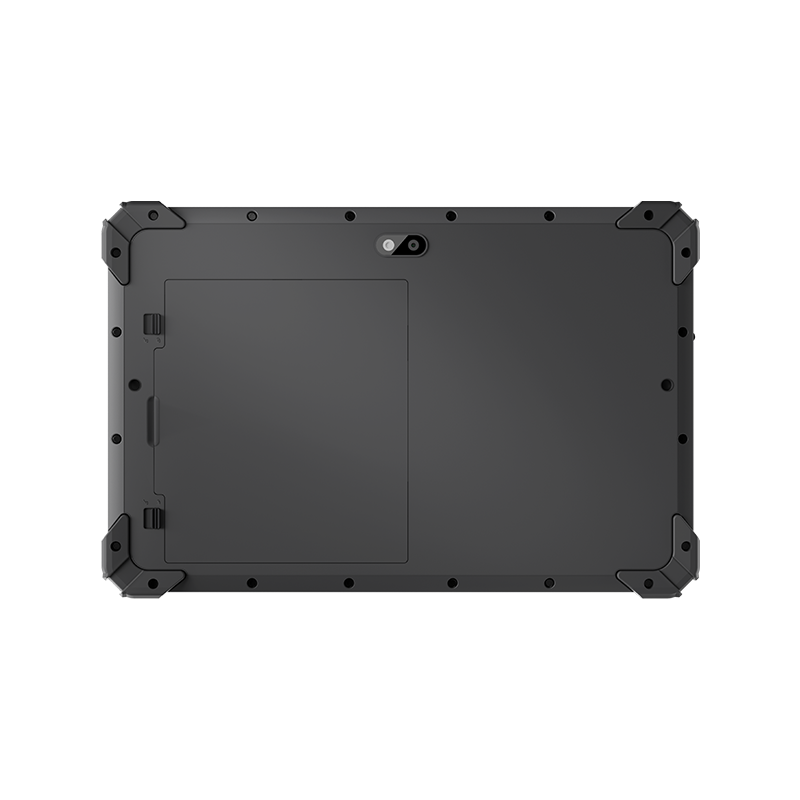

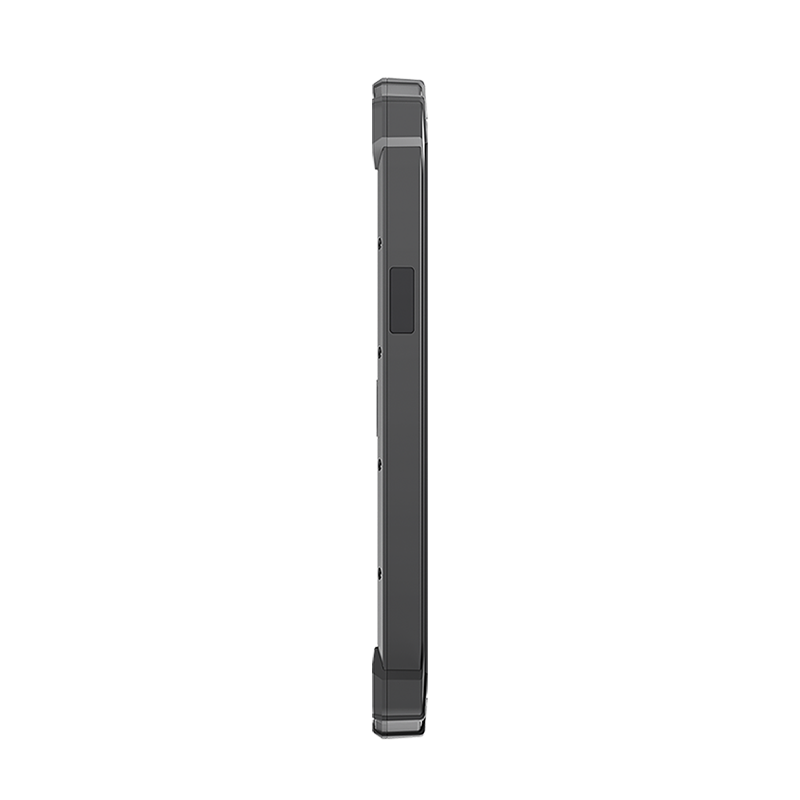

Detail photos of Rugged Field Service Tablet
Product parameters of Rugged Field Service Tablet
| Product Form | 8-inch reinforced tablet computer |
| Appearance size | 236.7*155.7*20 mm |
| Color | black |
| CPU | Intel JASPER LAKE N5100 processor, 4 cores and 4 threads, embedded with 4 MB SmartCache, TDP 6W， Maximum frequency 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory storage |
RAM 4GB DDR ROM 64GB |
| Operating system | Windows 10 Home，optional:Windows 10 Pro/Windows 10 IOT |
| Display |
Type: TFT Size: 8-inch frame mounted TFT color full screen 16:10 resolving power: 1200*1920 Brightness: 550cd/㎡ |
| Touch screen | 5-point tempered glass capacitive screen, G+G， Hardness 7H |
| Camera |
Front 5.0MP Rear 8.0MP, supports autofocus, with flashlight function |
| Key |
Power on/off button * 1 Volume+key * 1 Volume - Key * 1 F key * 1 (scan code key), customizable when there is no scan function Home button * 1 |
| Speaker | Built in 8 Ω/1W speakers * 2 |
| Mi Tou | Single MIC, sensitivity:- 42db, output impedance 2.2k Ω |
| Sensor | Gravity acceleration sensor |
| Real time clock | Built in polymer lithium-ion battery with a capacity of 3V/1mAh |
| Battery | Detachable polymer lithium-ion battery
Under a charging current of 5000mAh/7.6V, 19V/3.42A, it can be fully charged in 4 hours 6 hours (default 50% volume, WiFi connection, default 200 lumens brightness, playing 1080P high-definition video) |
| WIFI | WIFI 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI |
| Bluetooth | BT5.0 (BLE) class1 Transmission distance: 10m |
| 4G |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 optional：EC25-AF，750-VA，750-VSA |
| GPS | Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), cold start time not exceeding 60s |
| I/O interface | USB 3.0 * 1 (USB A port, HOST data transfer), Type C * 1 (charging and data transfer, support OTG * 1, support full speed 2.0 mode) |
| 3.5mm standard headphone jack * 1 | |
| Three in one card holder (Micro SD card, supports up to 512GB); Nano-SIM *1) | |
| HDMI 1.4a mini *1 | |
| 12PIN Pogo Pin * 1 (charging interface, USB signal connection base) | |
| The power adapter | Power input AC100V~240V 50Hz/60Hz output DC 19V 3.42A European standard |
| Pilot lamp | Blue indicator light * 1 (blue constant on when turned on, off when turned off) |
| Three defense characteristics | Working temperature:- 20 °C to 60 °C |
| Storage temperature:- 30 °C to 70 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% without condensation | |
| Protection level | IP65 |
| Optional Husks |
QR code，Honeywell N3680 |
|
NFC NXP NFC 13.56MHz Support ISO/IEC下14443A/14443B/15693/18092/Mifare protocol, card reading distance: 4cm Optional NXP300 |
FAQ
Q1. Why choose you?
A1: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q2. You are factory or trading company?
A2: We are 100% factory.
Q3. What is your payment?
A3: T/T wire bank transfer.
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
